Home ProductsExtruder Screen Mesh For Filter

50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen

50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen

    • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
    • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
    • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
    • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
    • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
  • 50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen

    Product Details:

    Place of Origin: China
    Brand Name: BM
    Certification: CE,CCC
    Model Number: BM-SCREEN017

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $0.16-$4.08per piece
    Packaging Details: water-proof plastic film and wooden case
    Delivery Time: 10-15 days after get the deposite
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 50000pcs per week
    Contact Now
    Detailed Product Description
    Material: SUS304,316,316L Filtering Rate: 5,10,20,25 Micron..600micron
    Dia: 45mm,60mm,150mm,as Client Request Mesh Type: Plain Weave And Dutch Weave
    Layers: Single Layer,2,3,4,5 Layers Feeature: Flexible Working
    Application: Recycling Plastic And Rubber Sample: Would Be Free
    Shipping: By Sea,by Express Main Marking: Europe,America,Australia,Asia,Africa
    Spot Welded: 4 Spot Or 8 Spot, Could As Client Request Tooling: With Charge
    Usage: Liquid Filter, Air Filter, Solid Filter

    50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    Packaging & Delivery

    Packaging Details

    wire oil filter screen mesh
    1.30-50m/roll in PVC bag
    2.2-8 rolls per carton
    3.waterproof bags outside
    4.package belt strengthen

    Delivery Time

    Shipped in 7 days after payment



    50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen


    Product Description



    Details table:

    Stainless steel wire mesh
    Weave Style plain weave
    Material 304, 316, 316L or customized
    Weave style plain weave, twill weave and dutch weave
    Type weave wire mesh, wire cloth, filter elements
    Application screen, filters, woven wire mesh
    Technique woven
    Mesh Count 1x1-635x635mesh/inch
    Thread Diameter 0.008-0.08inch (0.0203-2.03mm)
    Mesh Opening 0.0008-0.92inch(0.0203-23.37mm)
    Commonly Roll details 30m length X 1m width (length and width can be customized)



    Products deep produce:

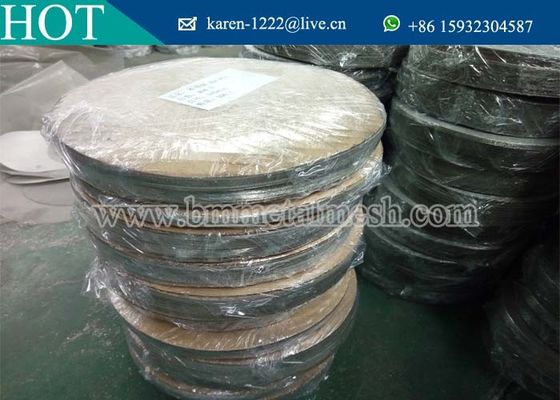

    Stainless steel round filter disc with metal ring



    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    dutch weave 316L stainless steel round filter circle



    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    25 50 micron 316L dutch weave stainless steel screen mesh for rosin press with 4"x4"

    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    250 micron dutch weave black steel wire sieve mesh



    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen





    Details sheet:

    Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
    Inch MM Inch MM
    1x1 .080 2.03 .920 23.37 84.6 41.1
    2X2 .063 1.60 .437 11.10 76.4 51.2
    3X3 .054 1.37 .279 7.09 70.1 56.7
    4X4 .063 1.60 .187 4.75 56.0 104.8
    4X4 .047 1.19 .203 5.16 65.9 57.6
    5X5 .041 1.04 .159 4.04 63.2 54.9
    6X6 .035 .89 .132 3.35 62.7 48.1
    8X8 .028 .71 .097 2.46 60.2 41.1
    10X10 .025 .64 .075 1.91 56.3 41.2
    10X10 .020 .51 .080 2.03 64.0 26.1
    12X12 .023 .584 .060 1.52 51.8 42.2
    12X12 .020 .508 .063 1.60 57.2 31.6
    14X14 .023 .584 .048 1.22 45.2 49.8
    14X14 .020 .508 .051 1.30 51.0 37.2
    16X16 .018 .457 .0445 1.13 50.7 34.5
    18X18 .017 .432 .0386 .98 48.3 34.8
    20X20 .020 .508 .0300 .76 36.0 55.2
    20X20 .016 .406 .0340 .86 46.2 34.4
    24X24 .014 .356 .0277 .70 44.2 31.8
    30X30 .013 .330 .0203 .52 37.1 34.8
    30X30 .012 .305 .0213 .54 40.8 29.4
    30X30 .009 .229 .0243 .62 53.1 16.1
    35X35 .011 .279 .0176 .45 37.9 29.0
    40X40 .010 .254 .0150 .38 36.0 27.6
    50X50 .009 .229 .0110 .28 30.3 28.4
    50X50 .008 .203 .0120 .31 36.0 22.1
    60X60 .0075 .191 .0092 .23 30.5 23.7
    60X60 .007 .178 .0097 .25 33.9 20.4
    70X70 .0065 .165 .0078 .20 29.8 20.8
    80X80 .0065 .165 .0060 .15 23.0 23.2
    80X80 .0055 .140 .0070 .18 31.4 16.9
    90X90 .005 .127 .0061 .16 30.1 15.8
    100X100 .0045 .114 .0055 .14 30.3 14.2
    100X100 .004 .102 .0060 .15 36.0 11.0
    100X100 .0035 .089 .0065 .17 42.3 8.3
    110X110 .0040 .1016 .0051 .1295 30.7 12.4
    120X120 .0037 .0940 .0064 .1168 30.7 11.6
    150X150 .0026 .0660 .0041 .1041 37.4 7.1
    160X160 .0025 .0635 .0038 .0965 36.4 5.94
    180X180 .0023 .0584 .0033 .0838 34.7 6.7
    200X200 .0021 .0533 .0029 .0737 33.6 6.2
    250X250 .0016 .0406 .0024 .0610 36.0 4.4
    270X270 .0016 .0406 .0021 .0533 32.2 4.7
    300X300 .0051 .0381 .0018 .0457 29.7 3.04
    325X325 .0014 .0356 .0017 .0432 30.0 4.40
    400X400 .0010 .0254 .0015 .370 36.0 3.3
    500X500 .0010 .0254 .0010 .0254 25.0 3.8
    635X635 .0008 .0203 .0008 .0203 25.0 2.63

    Wire diameters: 0.01-6.00 mm.
    Disc diameters: 5-600 mm.
    Disc shapes: round (diameter 44-600 mm), ring (inner diameter 18-50 mm, outer diameter 50-350 mm), rectangular (length 60-400 mm, width 50-100 mm), crescent, semicircle, square, oval, abnormal shape, etc.
    Weaving types: plain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.
    Layers: single layer or multiple layers.
    Edge processing methods: spot welding, wrapping edge or no edge processing.
    Marginal materials: stainless steel, copper, aluminum, rubber, etc.
    Filter precision: 0.1-300 µm.



    Metal mesh filter disc Mould



    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen





    4 spot welded 3 layers stainless steel mesh filter disc



    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    Features:

    • The screen filter mesh can be replaced without any manual operation.
    • The material flow never fluctuates.
    • The belt pump makes high quality plastic melting and forming at good stability.
    • No waste and less consumption of raw materials.
    • Consisting of 10 meters or 20 meters filter belt, belt box and electric control system.
    • Non-stop working production and absence of material fluctuation while exchanging the filter screen.
    • Smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    We are factory,so any quantity would be accept.



    50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen



    The Common Shipping:

    .for small quantity, shipped by courier.
    2.for large quantity, shiped by air or by sea.
    3.tracking number will be emailed to you after order has been shipped.
    4.If you have forwarder in China, we can send to your forwarder for free.

    Packing belowing:

    50 Micron Stainless Steel  Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen

    Best Price and Quality would be offered for you.
