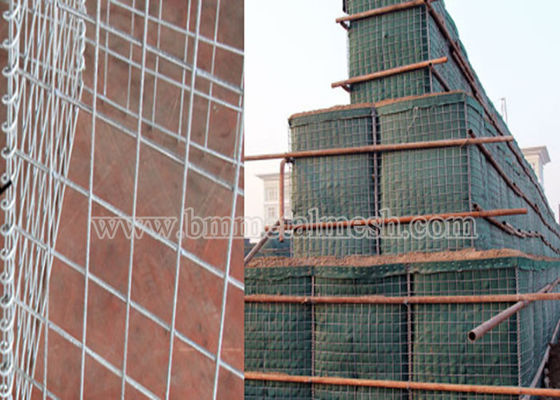

Hot Dipped Galvanized Gabion Basket Mesh/ Gabions for Retaining Wall
| Material: | Galvanized | Mesh type: | Welded Gabions |
| Wire dia: | 3.0mm-6.0mm | Opening size: | 75*75mm,50*50mm,100*100mm |
| Basket size: | 2000*1000*1000mm | Mesh Tensile: | 380N/mm2 - 550N/mm2 |
| Application: | Gabions, Garden, Retaining Wall, Fence, Shore Protection Etc. | Fishing: | Heavy Duty Galvanized Or Galfan Galvanized |
| Packing: | Wooden Pallet | Transport: | By Sea |
| Hole Shape: | Square | ||
| High Light: | galvanized gabion basket mesh,3.0mm gabion basket mesh,3.0mm galvanized gabion basket |
||
Hot Dipped Galvanized Gabion Baskets Mesh/Gabions for Retaining Wall
STANDARD GABION SIZES
(80 x 100 x 2.7mm)
| 1 x 1 x 1 | 1,5 x 1 x 1 |
| 2 x 1 x 1 | 3 x 1 x 1 |
| 4 x 1 x 1 | 2 x 0,5 x 0,5 |
| 2 x 1 x 0,5 | 3 x 1 x 0,5 |
| 4 x 1 x 0,5 | 6 x 2 x 0,5 |
To suit site conditions the manufacture of other custom made sizes is possible.
Class A galvanized or with an additional PVC coating.
NOTES TO DESIGN ENGINEERS
Today, Gabions are recognized as a standard civil engineering material and as such, are specified on most civil contracts. A neat, well-defined structure is not only aesthetically pleasing, but is the first step towards a sound and durable structure.
We have found in the past, that of the few structures that have failed, most failures were due to poor construction. Great care should be exercised to ensure that the baskets are properly wired together, pretensioned, cross-braced and filled with stone that will not pass through the mesh.
We, therefore, draw particular attention to the construction procedure.
SECURITY
It is well known that gabions offer a formidable defense against enemy attack, such as rocket fire, bomb blasts, grenades etc. A 1m high wall around a farmstead offers some protection. Bunkers and bomb shelters can also be additionally protected with gabions.
