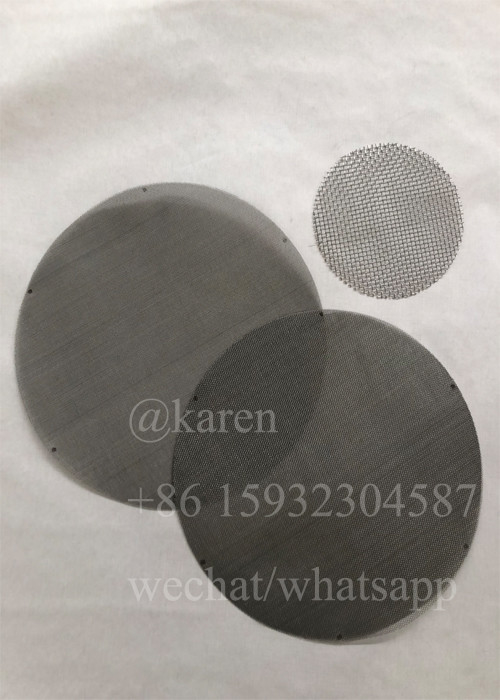

SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets

SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets

    • SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets
    • SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets
    • SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets
    • SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets
  • SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets

    Product Details:

    Place of Origin: China
    Brand Name: BM
    Certification: CE,CCC
    Model Number: BM-SCREEN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $0.324-$4.723 per piece
    Packaging Details: water-proof plastic film and wooden case
    Delivery Time: 10-15 days after get the deposite
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 5000pcs per week
    Contact Now
    Detailed Product Description
    Material: SS,MS Filtering Rate: 12*64,24*110
    Dia: 200mm,170mm Etc Mesh Type: Dutch Weave Type
    Layers: Single Layer Feeature: Flexible Working
    Application: Recycling Plastic Pellets Sample: Would Be Free
    Shipping: By Sea,by Express Main Marking: Europe,America,Australia,Asia,Africa
    Spot Welded: Could As Client Request Tooling: With Charge
    Usage: Plastic Processing,rubber Industry

    SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets




    Category: Extruer Screens/ Wire Mesh Filter/recycle plastic pellets


    SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets



    Adhering to stringent quality control procedures we offer you state of the art equipment with robust design, reliability and tremendous performance. Our circular screen come with smooth screening surface with no sharp edges, burrs or acute angles, high durability, stable under tension and are uniformly cut by specifically developed power press, to avoid uneven edge. We assure to provide, circular screens which are customized resulting in absolute no wastage.

    Belowing is the specification list:


      Extruder Screens/ Wire Mesh Filter

    Product Specifications
    STANDARD EXTRUDER SCREEN SPECIFICATION
    MESH
    WIRE DIA. MM
    APERTURE SIZE MM
    OPEN AREA
    10 X 10
    0.711
    1.829 MM
    51.8
    14 X 14
    0.457
    1.357 MM
    55.9
    16 X 16
    0.457
    1.131 MM
    50.7
    20 X 20
    0.559
    0.711 MM
    31.4
    20 X 20
    0.457
    0.813 MM
    41.0
    24 X 24
    0.376
    0.682 MM
    41.4
    30 X 30
    0.376
    0.531 MM
    34.2
    30 X 30
    0.310
    0.536 MM
    40.0
    40 X 40
    0.274
    0.361 MM
    32.3
    50 X 50
    0.193
    0.335 MM
    43.6
    60 X 60
    0.193
    0.230 MM
    29.8
    80 X 80
    0.122
    0.196 MM
    37.9
    100 X 100
    0.102
    0.152 MM
    36.0
    120 X 120
    0.091
    0.120 MM
    31.8
    150 X 150
    0.071
    0.088 MM
    29.6
    200 X 200
    0.050
    0.077 MM
    36.76
    250 X 250
    0.040
    0.062 MM
    36.76
    300 X 300
    0.040
    0.045 MM
    27.83
    325 X 325
    0.035
    0.043 MM
    30.49
    400 X 400
    0.028
    0.036 MM
    31.25
    500 X 500
    0.025
    0.026 MM
    25.79



    we are engaged in manufacturing and supplying a distinguished range of Extruder Screen. The offered product is made of anti-corrosive raw materials and progressive technology that can hold up to multiple environments and uses. The offered products are used in plastic melt filtration process and are of true highest quality. Furthermore, we provide these products in various configurations as per the requirements of our clients.

    SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets


    SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets


      • Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
      • Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
      • Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).
      • Stainless steel,dia,250mm,12/64 mesh (wire 0.6/0.4mm)
      • stainless steel.dia,250mm,24/110mesh (wire 0.35/0.25mm)
      • 30/150,40/200...
    • China Extruer Screens/ Wire Mesh cloth Filter

    Features of Circular Extruder Screen:


    • Our screen pack,wire mesh filters are available in different size, variants and specifications according to precise requirement of customers
    • Our products are highly durable with robust structure
    • We manufacture products by considering international quality standards and it becomes anti-abrasive & anti-corrosive in nature

    Application of Extruder Screens:
    The major application of screen pack,wire mesh filter is, it keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and recycle plastic pellets.
    Circular Extruder Screen are used in various industries as following:



    • Plastic Processing Industry
    • Chemical Industry
    • Rubber Industry
    • Pharmaceutical Industry and many more
    • recycle plastic pellets,granulars
    SS Extruer Screens/screen pack / Wire Mesh Filter For recycling plastic pellets
