1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box

1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box

    • 1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box
    • 1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box
    • 1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box
  • 1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box

    Product Details:

    Place of Origin: CHINA
    Brand Name: BM
    Certification: CE
    Model Number: GABIONS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 M²
    Price: $1.7 Per Square Meter
    Packaging Details: Packed
    Delivery Time: 7-10 days after getting the deposite
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 50000 Square Meters Per Week
    Contact Now
    Detailed Product Description
    Material: Iron Wire,steel Wire,stainless Steel Wire Surface: Hot-dipped Galvanized, Or PVC Coated
    Type: Hexagonal Gabion Box,welded Gabion Box Size: 1x0.5x1M

    1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box

    What is Retaining Wall of Wire Mesh Gabion Box?

    Belowing explanation for you

    Retaining Walls Wire Mesh Gabion Box Product Description:

    According to ASTM and EN standards, the diameter of the low carbon steel wire varies according to the engineering design requirements. Generally between 2.0-4.0mm, gabion wire tensile strength is not less than 38kg / m2, the weight of the metal coating is generally higher than 245g / m2, gabion mesh edge line diameter is generally greater than the diameter of the wire. The length of double stranded part is not less than 50mm,ensure that the metal coating and PVC coating is not damaged.

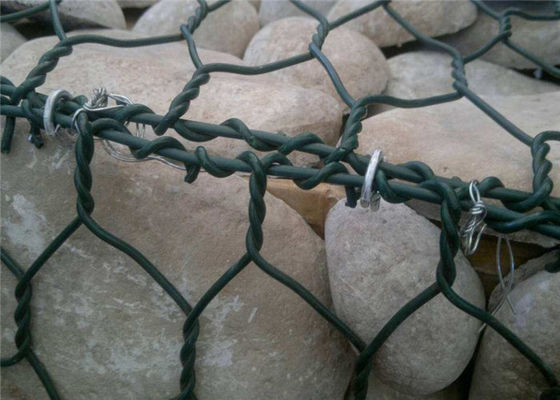

    The gabion cage is made of metal wire braided angle net (hexagonal net). The wire diameter used is different according to the size of the hexagon. In the case of coated wire hexagon,wire diameter is 2.0 mm to 4.0 mm , and in the case of PVC-coated metal wire-braided hexagonal wire netting, outer diameter is 3.0 mm to 4.0 mm. The wire of outer edge is coarser than the mesh wire.



    According to different material:

    The gabion box can be divided into galvanized gabion box, PVC coated gabion box, Galfan gabions and 10% aluminum-zinc gabions. They all have excellent corrosion and rust resistance performance, but they are different in the chemical content and performance.

    1.Galvanized gabion.

    The electric galvanized gabion has no higher than 90 g/m2 zinc coating, which is economical. And the hot dipped galvanized gabion have more than 200 g/m2 zinc coating to be used in the high corrosive applications.

    2.PVC coated gabion.

    Steel wires or galvanized wire are coated with PVC, which supplies double protection for the gabions in the corrosive environments. The PVC coated gabion can be made into different colors to suit surrounding environments.

    3.Aluminum-zinc gabions.

    The galvanized wires are added into different content of aluminum to form Galfan gabion and 10% aluminum-zinc gabion. They have triple service life than the galvanized gabions.



    According to the mesh structure:

    In different applications, the requirements to the tensile strength and stability is different. To suit more applications, the gabion box are made into double twisted structure and triple twisted structure.

    1.Double twisted structure.

    it is the common seen and widely used type gabion box. It has three strand and solid enough to be used in the common applications. It is lighter than the triple twisted gabion box in weight and easier to transport and operate.

    2.Tripe twisted structure.

    The triple twisted structure is a heavy duty type gabion box. It has five strands which can supply higher tensile strength and stability for the gabion box. The triple twisted gabion box is widely used in the high impact applications, such as flood controlling, coastal controlling, it can defend the impact from external force effectively.



    According to different fabrication technology:

    The gabion box can be made through different technology, it can be woven or welded into different mesh types and to be used in different applications.

    1.Woven type gabion box.

    The steel wires are woven into hexagonal mesh types in three strands and five strands. There is no any welding point and will not loose when it is cut into pieces. The woven type gabion box is widely used in the protective applications and is flexible than the welded gabion box.

    2.Welded gabion box.

    The steel wires are welded together to form square mesh types with a rigid and solid structure. Welded gabion is commonly used in both protective and decorative applications, such as bastion barrier for military defense and flood control, landscape construction.



    Retaining Walls Wire Mesh Gabion Box Wire diameter:

    Gabion box divided into three kinds of wire diameter - mesh wire, edge wire, tie wire:

    Mesh wire:2~4mm

    Edge wire:0.5-1.0mm thicker than mesh wire

    Tie wire:2.2mm in usual



    Retaining Walls Wire Mesh Gabion Box Feature:

    Corrosion and rust resistance.

    Acid and alkali resistance.

    High tensile strength.

    Economical.

    Ecological.

    Easy to install and assemble.



    Retaining Walls Wire Mesh Gabion Box Application:

    Retaining wall;Coastal protection;Bridge protection;Channel lining.

    Riverway controlling;Riverbank protection;Slope protection.

    Gabion planter;Bastion barrier;Landscape construction.



    •Packaging :Wooden box



    •Our Service:

    Materials certification

    Customized size



    Retaining Walls Wire Mesh Gabion Box Specification:



    Opening

    (mm)

    Wire Diameter

    (Metal Wire) (mm)

    Wire Diameter

    (PVC Coated)/ Inner/Outside(mm)

    Strands
    60X80 φ2.0-2.8 φ2.0/3.0-2.5/3.5 3
    80X100 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
    80X120 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
    100X120 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
    100X150 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
    120X150 φ2.0-4.0 φ2.0/3.0-3.0/4.0 3

    Gabion Box Size 0.5x1x1m 1x1x1m 1.5x1x1m 2x1x1m
    Wire Diameter 3mm 4mm 5mm 6mm
    Double horizontal wires style is available
    Mesh Hole Size 50x50mm 50x100mm 37.5x100mm 75x75mm
    Other specifications are available







    1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box1x0.5x1M Foldable Gabion Cage Retaining Walls Wire Mesh Gabion Box
