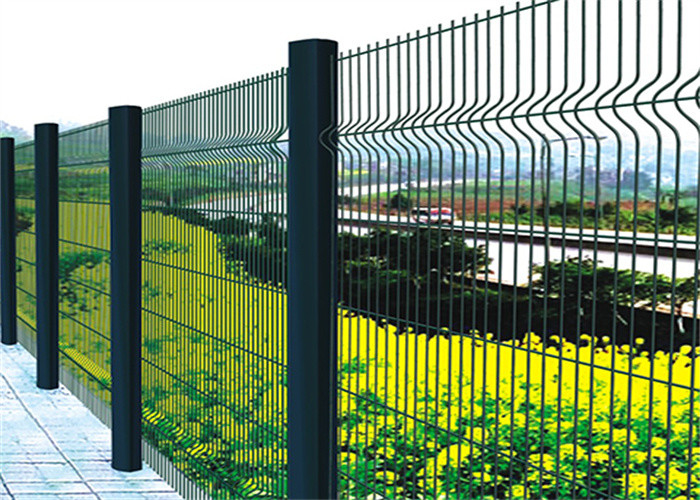

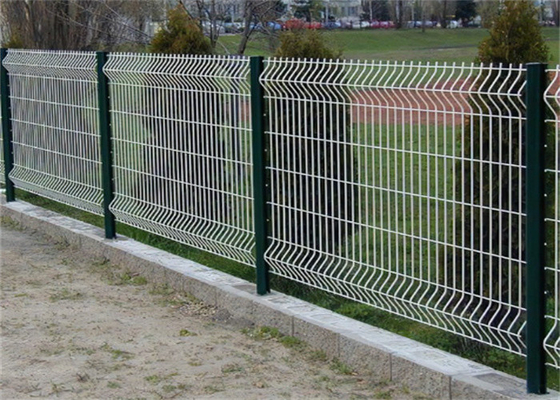

5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance

5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance

    • 5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance
    • 5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance
  • 5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance

    Product Details:

    Place of Origin: China
    Brand Name: BM
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 Square Meters
    Price: Negotiation
    Packaging Details: Pallets
    Delivery Time: 8-10 Days After Getting Deposite
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 80000 Per Week
    Contact Now
    Detailed Product Description
    Item: 3D Wire Fence Panels Material: Metal Wire
    Wire Diameter: 5.0Mm Post Material: Steel
    Mesh Size: 50x150Mm Post Size: 60 X 60Mm
    Post Surface Treatment: Powder Coating Post Thickness: 2Mm
    Color: Black,Green Or Customized Post Height: 1100Mm,1700Mm,2300Mm,etc

    5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance





    Product Description



    It is made of hot-dip galvanized wire or PVC-coated wire. These hexagonal wire meshes are mainly used for garden fencing, climbing plant support, rabbit netting, chicken netting, birdcages, Etc, due to their excellent corrosion resistance, high strength, and sturdy construction.



    Type: Garden Fencing
    Place of Origin: Hebei, China
    Frame Material: Metal
    Metal Type: Steel
    Surface Treatment Type: Heat Treated
    Finishing: PVC Coated,Powder Coated. Electric/Hot dipped galvanized.
    Item: weld wire fence
    Material: high quality low carbon steel wire/tube
    Wire diameter:3-6mm
    Mesh Aperture:50*100mm,50*150mm,50*200mm,100*100mm,100*200mm,etc
    Height: 1.03m,1.23m,1.53m,1.83m,2.03m,2.23m,etc
    Width:From 1000mm to 3000mm
    Color:RAL6005,RAL9005,RAL9010,other color can make as your interesting.
    Post: Square post:50*50,60*60,80*80,40*80mm,100*100mm;Round post:48,60,75mm,Peach post:70*100mm,etc
    Fence post thickness:1.0-5.0mm



    Product Specification



    Specification of Welded Wire Mesh
    Opening Wire Diameter Width

    0.4-2M



    Length

    5-50m

    electric galvanized before welded,

    electric galvanized after welded,

    hot-dipped galvanized before welded,

    hot-dipped galvanized after welded,

    PVC coated,

    Stainless steel wire

    In inch In metric unit
    1/4″ x 1/4″ 6.4 x 6.4mm BWG24-22
    3/8″ x 3/8″ 10.6x 10.6mm BWG22-19
    1/2″ x 1/2″ 12.7 x 12.7mm BWG23-16
    5/8″ x 5/8″ 16x 16mm BWG21-18
    3/4″ x 3/4″ 19.1 x 19.1mm BWG21-16
    1″ x 1/2″ 25.4x 12.7mm BWG21-16
    1-1/2″ x 1-1/2″ 38 x 38mm BWG19-14
    1″ x 2″ 25.4 x 50.8mm BWG16-14
    2″ x 2″ 50.8 x 50.8mm BWG15-12
    2” x 4″ 50.8 x 101.6mm BWG15-12
    4” x 4″ 101.6 x 101.6mm BWG15-12
    4” x 6″ 101.6 x 152.4mm BWG15-12
    6” x 6″ 152.4 x 152.4mm BWG15-12
    6” x 8″ 152.4 x 203.2mm BWG14-12
    Note: Special specifications can be made according to customers requires.



    Wire Dia Mesh Size Panel Width Panel Height Folds Post Height Post Model
    burying style bass style
    3.0mm;
    4.0mm;
    5.0mm;
    6.0mm
    50*100mm;
    50*200mm;
    50*150mm;
    70*150mm
    1-2.5m 1.03m 2 1.4m 1.2m Square;
    Peach;
    Round
    1.23m 2 1.6m 1.4m
    1.53m 3 2.0m 1.7m
    1.73m 3 2.2m 1.9m
    1.83m 4 2.3m 2.0m
    2.03m 4 2.5m 2.2m
    Color RAL6005,RAL9005,RAL9010,other color can make as your interesting





    Product Process



    1. Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
    2. Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
    3. Black wire →Welding→Electric galvanized→Powder coated/PVC coated
    4. Black wire→Electric galvanized→Welding→Powder coated/PVC coated



    Product Features



    This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.




    Product Application



    1 Construction
    2 Garden Fencing





    Product Details





    5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance

    5.0mm 3D Wire Fence Panels Metal Border Fencing Weather Resistance
