| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 5000 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 Days After Getting Deposite |
| Payment Terms: | T/T Advantaced, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Square Meters Per Week |
| Name: | Chain Link Mesh Fence | Hole Shape: | Diamond |
|---|---|---|---|
| Hole Size: | 50x50Mm, 60x60Mm,70x70Mm | Wire Dia: | 9 Gauge |
| Fence Height: | 4FT,5FT,6FT,8FT | Surface: | PVC Coated |
| HS Code: | 73144900 | Package: | Pallets |

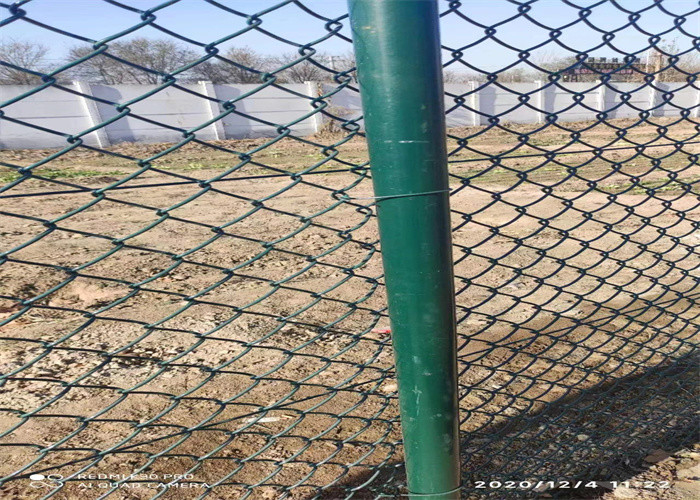

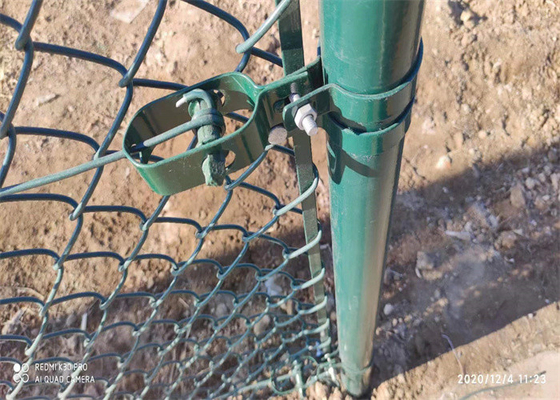

6FT Diamond Hole Fencing Galvanized PVC Coated Chain Link Mesh Fence
Chain Link Fence Description
| Chain Link Fence | ||||||||
| material | galvanized wire, PVC coated wire | |||||||
| opening | 1" | 1.5" | 2" | 2.25" | 2.4" | 2.5" | 3" | 4" |
| 25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm | |
| wire diameter | 14#-6# | |||||||
| 2.00mm-5.00mm | ||||||||
| Fence height | 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3m etc | |||||||
| Coated color | Black, Dark green, Blue, Sliver etc | |||||||
| Round fence pipe | OD48mm, thickness 2mm | |||||||
| Top rail pipe | OD32mm, thickness 1.2mm, 1.5mm etc | |||||||
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
| 40X40mm 50X50mm 60X60mm 65X65mm 75X75mm |
2.0mm - 4.8mm |
Galvanized and PVC coated Or Hot dipped galvanized |
10m 15m 18m 20m 25m 30m |
1200mm |
| 1500mm | ||||
| 1800mm | ||||
| 2000mm | ||||
| 2100mm | ||||
| 2400mm | ||||
| 2500mm | ||||
| 3000mm | ||||
| 3600mm |
The most common is the galvanized finish and the second is a colored system where the mesh fabric has an extruded vinyl coating with the pipe and fittings being powder coated. There are many colors to choose from, though the most common are black and green. Both product types come with a 15-year warranty and greatly add to the beauty and security of your home or business.
The greatest advantage of a chain link fence is its low maintenance. Chain link comes in a variety of gauges for the wire mesh and several pipe sizes and thickness’ for just about every need. Colored vinyl slats are available to increase privacy, if needed, and can be installed by our crews or the customer. Chain link fence is a cost effective way to solve your security issues, as well as beautify your home or business.
