| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 5000 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 Days After Getting Deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Per Week |
| Item: | 3D Fence Wire Mesh | Material: | Metal Wire |
|---|---|---|---|
| Wire Diameter: | 5.0Mm | Post Material: | Steel |
| Mesh Size: | 50x150Mm | Post Size: | 60 X 60Mm |
| Post Height: | 1100Mm,1700Mm,2300Mm,etc | Color: | Black,Green Or Customized |
| Post Surface Treatment: | Powder Coating | Post Thickness: | 2Mm |

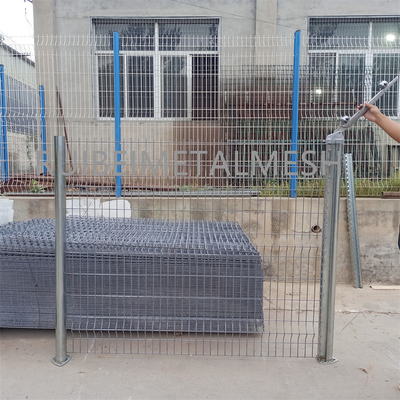

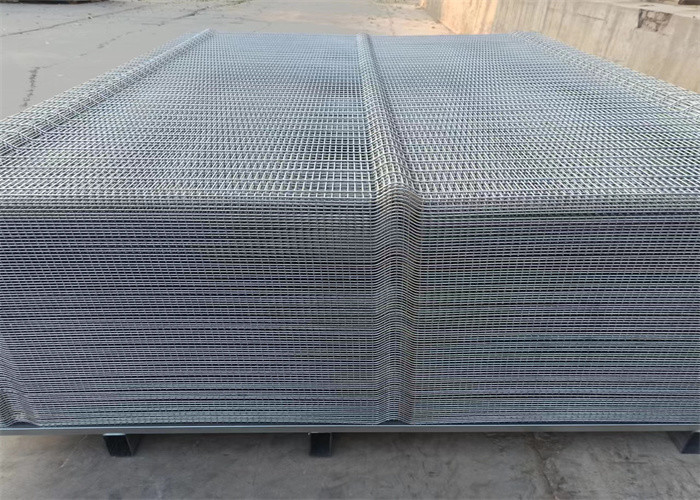

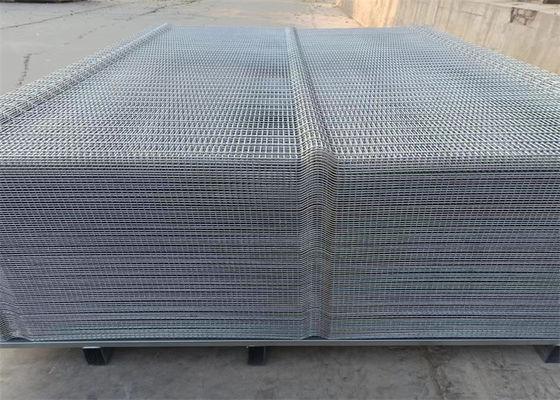

V Mesh Security Fencing 3D Curved Triangle Panel Fence
Product Description
he galvanized welded wire construction of this fence provides durability and resistance to corrosion, making it suitable for outdoor applications. The visibility it offers allows for surveillance and monitoring while maintaining an open and transparent appearance. Its high degree of rigidity ensures that the fence remains sturdy and secure.
Overall, the Welded Wire Fence is a popular choice for various applications due to its functionality, durability, and aesthetic appeal.
Product Specification
| Specification of Welded Wire Mesh | ||||
| Opening | Wire Diameter | Width
0.4-2M
Length 5-50m |
electric galvanized before welded,
electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| In inch | In metric unit | |||
| 1/4″ x 1/4″ | 6.4 x 6.4mm | BWG24-22 | ||
| 3/8″ x 3/8″ | 10.6x 10.6mm | BWG22-19 | ||
| 1/2″ x 1/2″ | 12.7 x 12.7mm | BWG23-16 | ||
| 5/8″ x 5/8″ | 16x 16mm | BWG21-18 | ||
| 3/4″ x 3/4″ | 19.1 x 19.1mm | BWG21-16 | ||
| 1″ x 1/2″ | 25.4x 12.7mm | BWG21-16 | ||
| 1-1/2″ x 1-1/2″ | 38 x 38mm | BWG19-14 | ||
| 1″ x 2″ | 25.4 x 50.8mm | BWG16-14 | ||
| 2″ x 2″ | 50.8 x 50.8mm | BWG15-12 | ||
| 2” x 4″ | 50.8 x 101.6mm | BWG15-12 | ||
| 4” x 4″ | 101.6 x 101.6mm | BWG15-12 | ||
| 4” x 6″ | 101.6 x 152.4mm | BWG15-12 | ||
| 6” x 6″ | 152.4 x 152.4mm | BWG15-12 | ||
| 6” x 8″ | 152.4 x 203.2mm | BWG14-12 | ||
| Note: Special specifications can be made according to customers requires. | ||||
|
Wire thickness
|
Mesh size
|
Panel width
|
Number of folds
|
Height
|
|
3.5mm
4.0mm
4.5mm
5.0mm
|
50×100mm
50×200mm
55×100mm
55×200mm
|
2.0m
2.5m
2.9m
|
2
|
630mm
|
|
2
|
830mm
|
|||
|
2
|
1030mm
|
|||
|
2
|
1230mm
|
|||
|
3
|
1530mm
|
|||
|
3
|
1730mm
|
|||
|
3
|
1930mm
|
|||
|
4
|
2030mm
|
|||
|
4
|
2230mm
|
|||
|
4
|
2430mm
|
|||
|
Surface treatment: hot dipped galvanized, galvanized +powder/PVC coating.
|
||||
|
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black. All color can be customized.
|
||||
|
Note: Any other size can be customized according to your requirement.
|
||||
Product Process
| 1. | Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated |
| 2. | Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated |
| 3. | Black wire →Welding→Electric galvanized→Powder coated/PVC coated |
| 4. | Black wire→Electric galvanized→Welding→Powder coated/PVC coated |
Product Features
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.
Product Application
1 Construction
2 Garden Fencing
