| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 5000 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 Days After Getting Deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Per Week |
| Item: | V Mesh Security Fencing | Material: | Metal Wire |
|---|---|---|---|
| Wire Diameter: | 5.0Mm | Post Material: | Steel |
| Mesh Size: | 50x150Mm,50x200Mm | Post Size: | 60 X 60Mm |
| Post Height: | 1100Mm,1700Mm,2300Mm,etc | Color: | Black,Green Or Customized |
| Post Thickness: | 2Mm | Post Surface Treatment: | Powder Coating |

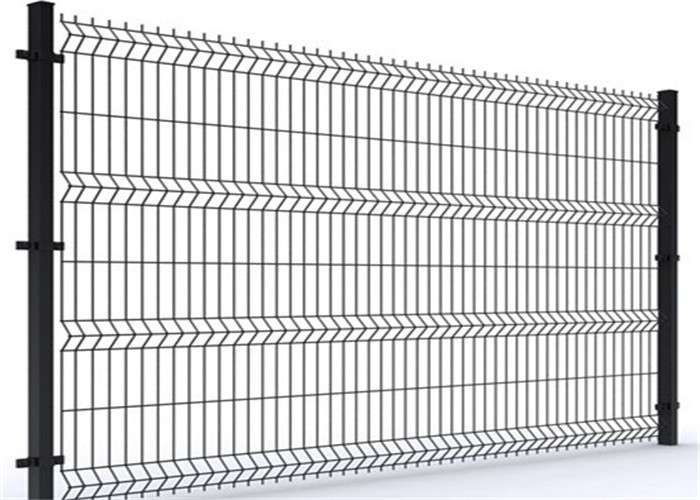

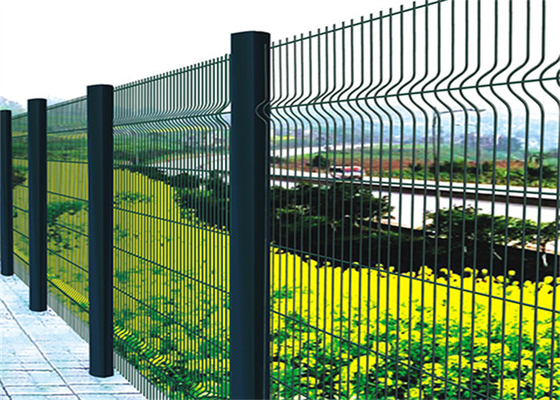

V Mesh Security Fencing Welded Mesh Panels RAL6005 Green
What is V Mesh Security Fencing?
V Mesh fencing panels are integral components of V Mesh fencing systems, featuring a unique V-shaped wire pattern.
V Mesh Security Fencing Description
Type: Garden Fencing
Place of Origin: Hebei, China
Frame Material: Metal
Metal Type: Steel
Surface Treatment Type: Heat Treated
Finishing: PVC Coated,Powder Coated. Electric/Hot dipped galvanized.
Item: weld wire fence
Material: high quality low carbon steel wire/tube
Wire diameter:3-6mm
Mesh Aperture:50*100mm,50*150mm,50*200mm,100*100mm,100*200mm,etc
Height: 1.03m,1.23m,1.53m,1.83m,2.03m,2.23m,etc
Width:From 1000mm to 3000mm
Color:RAL6005,RAL9005,RAL9010,other color can make as your interesting.
Post: Square post:50*50,60*60,80*80,40*80mm,100*100mm;Round post:48,60,75mm,Peach post:70*100mm,etc
Fence post thickness:1.0-5.0mm
Product Specification
| Specification of Welded Wire Mesh | ||||
| Opening | Wire Diameter | Width
0.4-2M
Length 5-50m |
electric galvanized before welded,
electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| In inch | In metric unit | |||
| 1/4″ x 1/4″ | 6.4 x 6.4mm | BWG24-22 | ||
| 3/8″ x 3/8″ | 10.6x 10.6mm | BWG22-19 | ||
| 1/2″ x 1/2″ | 12.7 x 12.7mm | BWG23-16 | ||
| 5/8″ x 5/8″ | 16x 16mm | BWG21-18 | ||
| 3/4″ x 3/4″ | 19.1 x 19.1mm | BWG21-16 | ||
| 1″ x 1/2″ | 25.4x 12.7mm | BWG21-16 | ||
| 1-1/2″ x 1-1/2″ | 38 x 38mm | BWG19-14 | ||
| 1″ x 2″ | 25.4 x 50.8mm | BWG16-14 | ||
| 2″ x 2″ | 50.8 x 50.8mm | BWG15-12 | ||
| 2” x 4″ | 50.8 x 101.6mm | BWG15-12 | ||
| 4” x 4″ | 101.6 x 101.6mm | BWG15-12 | ||
| 4” x 6″ | 101.6 x 152.4mm | BWG15-12 | ||
| 6” x 6″ | 152.4 x 152.4mm | BWG15-12 | ||
| 6” x 8″ | 152.4 x 203.2mm | BWG14-12 | ||
| Note: Special specifications can be made according to customers requires. | ||||
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Product Process
| 1. | Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated |
| 2. | Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated |
| 3. | Black wire →Welding→Electric galvanized→Powder coated/PVC coated |
| 4. | Black wire→Electric galvanized→Welding→Powder coated/PVC coated |
Product Features
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.
Product Application
1 Construction
2 Garden Fencing
Product Details
