304/316L/321/310S Wedge Johnson Screen Filter Panel / Johnson Vee Wire Screen 23Um

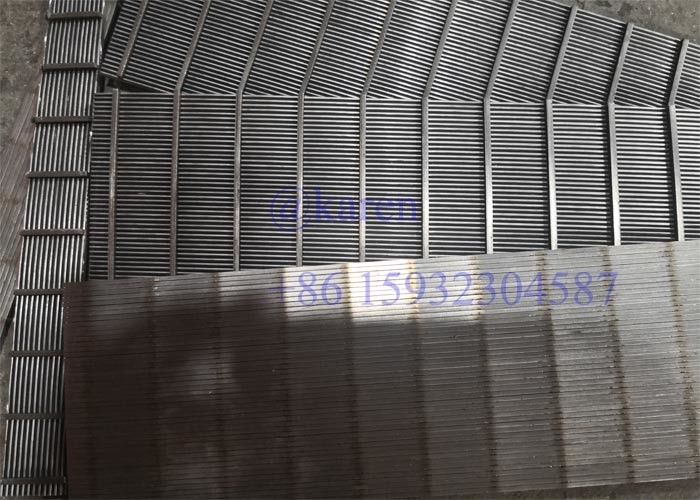

Wedge Wire Screen Panel Manufacture

Wedge Wire Screen Panel Information

Each Wedge Wire screen product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.

Wedge Wire Screen Panel Specification

• Material: Stainless steel 304/316L/321/310S, Duplex steel 2205/2507, Hastelloy, Titanium alloy, etc.
• Surface profile type: Triangular (V-shaped, wedge) wires.
• Support profile type: Triangular (V-shaped, wedge), round rod, flat bar, water-drop, and square wire.
• Slot size: 0.02 mm – 10 mm.
• Pitch: 10 mm – 100 mm.
• Surface profile wire length: Up to 3,000 mm.
• Support profile wire length: Up to 4,000 mm.

Wedge Wire Screen Panel Advatages

(1) The opening range is large and the opening rate is high.

(2) Each intersection of the johnson vee wire and the support rod is welded, so the accuracy is high and the gap is accurate.

(3) There are only two points of contact between the continuous gap and the solid particles, which is not easy to plug.

(4) The surface is smooth, the catalyst wears less, the particles are not easy to crush, and the surface roughness of the sieve bar can be as low as 6.3 um.

(5) The sieve mesh with Johnson wedge wire screen wire and connecting rod of different gap sizes and specifications has good strength. If the operating conditions are harsh and the load is large, the strengthening material and connecting rod with large cross section can be selected, and the tensile force of each solder joint can reach 2000-3000N.

(6) Long service life, easy installation, lightweight, more economical.

Wedge Wire Screen Panel Features

The features of the Wedge Wire screen make it an attractive solution for
separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Wedge Wire Screen Panel Characters

Wedge Wire Screen Panel Application

Widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well

as many other applications involving liquid & solids separation.
