| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic And Pallets |
| Delivery Time: | 15 Days After Got the Deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
| Supply Ability: | 30 Sets Per Month |
| Type: | Padel Court | Item: | Tennis Court Wire Fence |
|---|---|---|---|
| Size: | 10Mx20M | Material: | Steel Wire |
| Surface Treatment: | Galvanized +Pvc Coated | Color: | Green,Black Or Custom |
| Application: | Padel Tennis Sport | Key Words: | Tennis Paddle Court, Padle Courts, Padel Tennis Court |

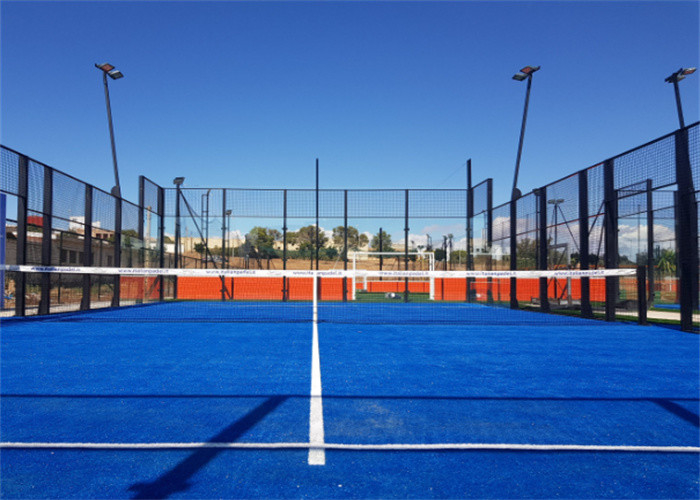

Hot Selling Panoramic Padel Court Canchas De Padel Cost-Effective Outdoor Paddle Tennis Court Supplier
What is a paddle court?
Padel is a mix between Tennis and Squash. It's usually played in doubles on an enclosed court surrounded by walls of glass and metallic mash. The court is one-third of the size of a tennis court. The ball can bounce of any wall but can only hit the turf once before being returned.
Padel Tennis Court Description
Padel is played in doubles on an enclosed court made of glass and mesh, which is a third of the size of a full-size tennis court. The game is easy to learn, making it ideal for families as it can easily be played with mixed skill levels.
A Padel court is 10×20 meters surrounded by glass walls and metal mesh. The highest part of the walls is 4 meters and the lowest 3 meters. The court is separated by a net with a maximum height of 88 cm in the center and 92 cm at the sides.
Padel Tennis Court Techniques:
| Name | Padel Tennis Court | Turf | 12mm curved grass |
| Columns | 100*100*3mm 50*100mm*3mm | Tempered Glass | Thickness 12mm |
| Beam | 100*100*3mm 50*100mm*3mm | Light | 200W LED light |
| Mesh | hole size 50*50mm |
Our company provides professional design, production, sales, installation guide, and after-sales service for Padel court. We have our own large-scale factory, welcome to consult.
Hot Dip Galvanized Steel Tube | 100x50x3mm square steel tube |
Galvanized Steel Mesh | 50x50mm with a diameter of 4mm |
Tempered Glass | 2000x2000x12mm or 3000x3000x12mm |
Artificial Turf | Dtex 8000, blue or green |
Tennis net with poles | 1 set |
LED light | 4 pcs, 200W |
Bolts & Nuts | stainless steel |
Rubber Pad | black |
Padel Court Structure

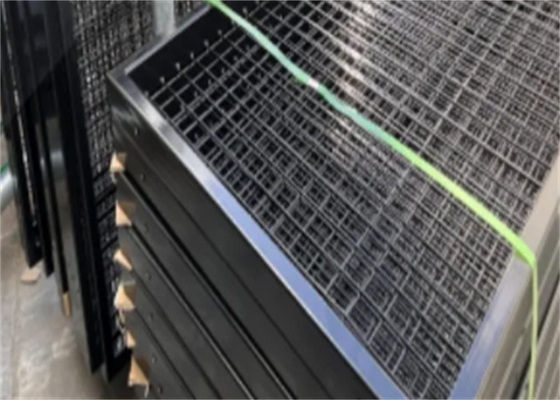

In addition to tempered glass, the stadium is enclosed by square-hole touch-welded mesh (excluding doors), with a hole distance of 50×50mm and a mesh wire φ4mm; 40×40×2.0 square tubes are used on the upper and lower sides of the grid frame to weld with the mesh.The mesh wire is flush with the cross-section of the square tube, and the cross-section is not exposed;The imported steel meets the requirements of GB/T 699-1999 standard and meets the strength of the equipment.
The manufacturing processes of the structure of Century Star Padel Courts are made by:
Laser: shaping/ cutting the pieces with maximum precision and finishing.
Robotic welding: guaranteeing its quality and avoiding future pores rust appearance.
