20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack

20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack

    • 20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack
    • 20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack
  • 20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack

    Product Details:

    Place of Origin: China
    Brand Name: BM
    Certification: CE,CCC
    Model Number: BM-SCREEN025

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Be Negotiated
    Packaging Details: Water-Proof Plastic Film And Wooden Case
    Delivery Time: 7-10 Days After Get The Deposite
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 50000 Pcs Per Week
    Contact Now
    Detailed Product Description
    Name: Extruder Screen Pack Material: SUS304,316,316L
    Dia: 45mm,60mm,150mm,as Client Request Mesh Type: Plain Weave And Dutch Weave
    Technology: Welding Spot Feeature: Flexible Working
    Application: Filtering Tooling: With Charge

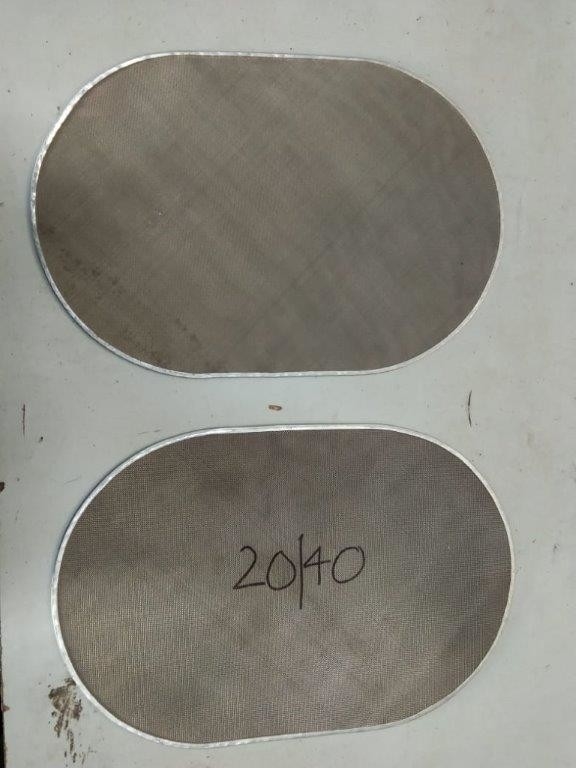

    Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack





    Extruder Screen Pack Description



    The extruder screen is also called the wire mesh disc filter, the screen filtr disc,is made of metal wire mesh, such as galvanized wiremesh, stainless steel wire mesh, black iron cloth, etc.The working principle of the filter disc is to separate or filter one substance fromanother.Therefore,you can remove unwanted contaminants from fuids, air or solids. Filter discs can be divided into stainless steel flterdiscs, copper flter discs, black thread cloth filter discs and sintered filter discs according to their raw materials. According to the numberof layers, the filter disc can be divided into single-layer flter disc, double-layer fiter disc and multi-layer filter disc.According to the edgetreatment,fiter discs can be divided nto borderless flter discs, encapsulated filter discs, and spot welded filter discs.According to thescreen structure, it can be divided into screen screen and screen filter.





    Extruder Screen Pack Technique Parameter



    Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
    Inch MM Inch MM
    1x1 .080 2.03 .920 23.37 84.6 41.1
    2X2 .063 1.60 .437 11.10 76.4 51.2
    3X3 .054 1.37 .279 7.09 70.1 56.7
    4X4 .063 1.60 .187 4.75 56.0 104.8
    4X4 .047 1.19 .203 5.16 65.9 57.6
    5X5 .041 1.04 .159 4.04 63.2 54.9
    6X6 .035 .89 .132 3.35 62.7 48.1
    8X8 .028 .71 .097 2.46 60.2 41.1
    10X10 .025 .64 .075 1.91 56.3 41.2
    10X10 .020 .51 .080 2.03 64.0 26.1
    12X12 .023 .584 .060 1.52 51.8 42.2
    12X12 .020 .508 .063 1.60 57.2 31.6
    14X14 .023 .584 .048 1.22 45.2 49.8
    14X14 .020 .508 .051 1.30 51.0 37.2
    16X16 .018 .457 .0445 1.13 50.7 34.5
    18X18 .017 .432 .0386 .98 48.3 34.8
    20X20 .020 .508 .0300 .76 36.0 55.2
    20X20 .016 .406 .0340 .86 46.2 34.4
    24X24 .014 .356 .0277 .70 44.2 31.8
    30X30 .013 .330 .0203 .52 37.1 34.8
    30X30 .012 .305 .0213 .54 40.8 29.4
    30X30 .009 .229 .0243 .62 53.1 16.1
    35X35 .011 .279 .0176 .45 37.9 29.0
    40X40 .010 .254 .0150 .38 36.0 27.6
    50X50 .009 .229 .0110 .28 30.3 28.4
    50X50 .008 .203 .0120 .31 36.0 22.1
    60X60 .0075 .191 .0092 .23 30.5 23.7
    60X60 .007 .178 .0097 .25 33.9 20.4
    70X70 .0065 .165 .0078 .20 29.8 20.8
    80X80 .0065 .165 .0060 .15 23.0 23.2
    80X80 .0055 .140 .0070 .18 31.4 16.9
    90X90 .005 .127 .0061 .16 30.1 15.8
    100X100 .0045 .114 .0055 .14 30.3 14.2
    100X100 .004 .102 .0060 .15 36.0 11.0
    100X100 .0035 .089 .0065 .17 42.3 8.3
    110X110 .0040 .1016 .0051 .1295 30.7 12.4
    120X120 .0037 .0940 .0064 .1168 30.7 11.6
    150X150 .0026 .0660 .0041 .1041 37.4 7.1
    160X160 .0025 .0635 .0038 .0965 36.4 5.94
    180X180 .0023 .0584 .0033 .0838 34.7 6.7
    200X200 .0021 .0533 .0029 .0737 33.6 6.2
    250X250 .0016 .0406 .0024 .0610 36.0 4.4
    270X270 .0016 .0406 .0021 .0533 32.2 4.7
    300X300 .0051 .0381 .0018 .0457 29.7 3.04
    325X325 .0014 .0356 .0017 .0432 30.0 4.40
    400X400 .0010 .0254 .0015 .370 36.0 3.3
    500X500 .0010 .0254 .0010 .0254 25.0 3.8
    635X635 .0008 .0203 .0008 .0203 25.0 2.63



    Extruder Screen Pack Character



    • Working medium: oil, water and solid particles in the air
    • Filter material: imported fiberglass, filter felt
    • Filter accuracy: 0.01-5um
    • Filter level: main pipeline dust removal filter, main pipeline oil removal filter, high efficiency oil removal filter, ULPA oil removal filter, active carbon filter
    • Used part: in the front of air compressor, in the back of the air compressor



    Extruder Screen Pack Usage



    • Extruder screen/screen filter is mainly used for screening and separation in mining, coal,food, medicine and other industriesCeramics, glass, food, scientific research, petroleum, chemical industry, machinery.
    • Used in automobile, truck air filter, high molecular polymer fltration, long fiber short fiber melted filim production, medicine,water, hot gas treatment, etc.



    20 Mesh 40 Mesh Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack
