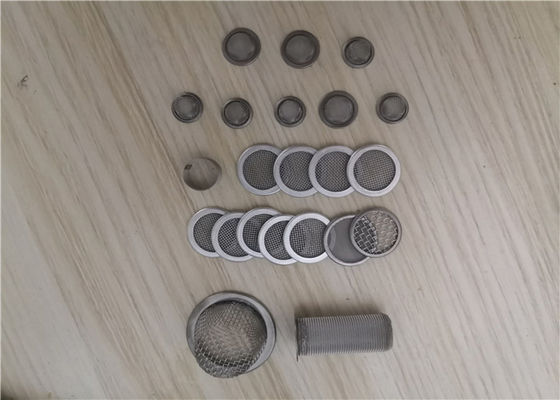

4 Spot 8 Spot Extruder Screen Pack

MOQ:	1 Piece
Price:	Be Negotiated
Standard Packaging:	Water-Proof Plastic Film And Wooden Case
Delivery Period:	7-10 Days After Get The Deposite
Payment Method:	D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
Supply Capacity:	50000 Pcs Per Week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE,CCC

Model Number

BM-SCREEN025

Name:

Extruder Screen Pack

Material:

SUS304,316,316L

45mm,60mm,150mm,as Client Request

Mesh Type:

Plain Weave And Dutch Weave

Technology:

Welding Spot

Feeature:

Flexible Working

Application:

Filtering

Tooling:

With Charge

Highlight:

plain weave extruder screen pack

plain weave screen pack in extrusion

dutch weave extruder screen pack

Product Description

Plain Weave Dutch Weave 4 Spot 8 Spot Extruder Screen Pack

Extruder Screen Pack Description

The extruder screen is also called the wire mesh disc filter, the screen filtr disc,is made of metal wire mesh, such as galvanized wiremesh, stainless steel wire mesh, black iron cloth, etc.The working principle of the filter disc is to separate or filter one substance fromanother.Therefore,you can remove unwanted contaminants from fuids, air or solids. Filter discs can be divided into stainless steel flterdiscs, copper flter discs, black thread cloth filter discs and sintered filter discs according to their raw materials. According to the numberof layers, the filter disc can be divided into single-layer flter disc, double-layer fiter disc and multi-layer filter disc.According to the edgetreatment,fiter discs can be divided nto borderless flter discs, encapsulated filter discs, and spot welded filter discs.According to thescreen structure, it can be divided into screen screen and screen filter.

Extruder Screen Pack Technique Parameter

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Extruder Screen Pack Character

Working medium: oil, water and solid particles in the air
Filter material: imported fiberglass, filter felt
Filter accuracy: 0.01-5um
Filter level: main pipeline dust removal filter, main pipeline oil removal filter, high efficiency oil removal filter, ULPA oil removal filter, active carbon filter
Used part: in the front of air compressor, in the back of the air compressor

Extruder Screen Pack Usage

Extruder screen/screen filter is mainly used for screening and separation in mining, coal,food, medicine and other industriesCeramics, glass, food, scientific research, petroleum, chemical industry, machinery.
Used in automobile, truck air filter, high molecular polymer fltration, long fiber short fiber melted filim production, medicine,water, hot gas treatment, etc.

4 Spot 8 Spot Extruder Screen Pack 0
