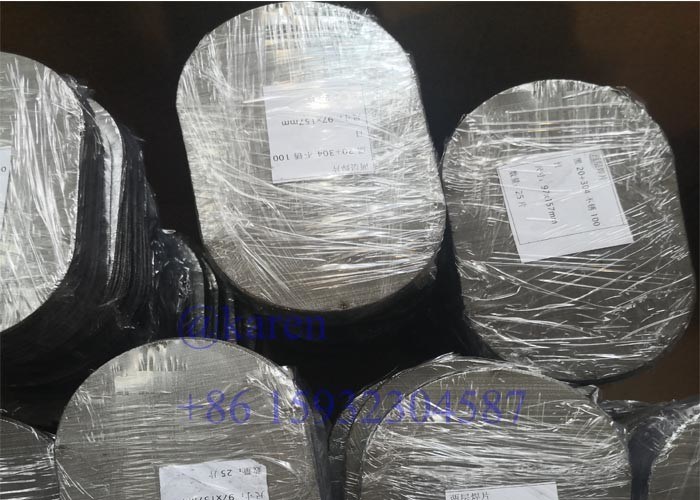

Dutch Weave 12/64 14/88 24/110 Mesh Filter Disc For Extruder Mesh

MOQ:	1 piece
Price:	Negotiated
Standard Packaging:	Water-Proof Plastic Film And Wooden Case
Delivery Period:	10-15 Days After Get The Deposite
Payment Method:	D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
Supply Capacity:	50000 Pcs Per Week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE,CCC

Model Number

BM-SCREEN

Material:

Mild Steel

Filtering Rate:

12*64,24*110

200Mm,170Mm 176.30Mm Etc

Mesh Type:

Dutch Weave Type

Layers:

Single Layer

Feature:

Flexible Working

Application:

Plastic Particle Filter

Sample:

Would Be Free

Main Marking:

Europe,America,Australia,Asia,Africa

Spot Welded:

Could As Client Request

Tooling:

With Charge

Usage:

Plastic Processing,Rubber Industry

Shipping:

By Sea,By Express

Highlight:

24/110 mesh filter disc

12/64 filter mesh disc

12/64 mesh filter disc

Product Description

Dutch Weave 12/64 14/88 24/110 Filter Mesh,Filter,Extruder Mesh,Plastic Particle Filter

Category: F ilter Mesh,Filter,Extruder Mesh,Plastic Particle Filter

Features:

1. Filter made of wire mesh
2. It has high strength and large oil-passing capacity.
3. Reliable filtration, easy to clean, etc.

Technical Parameters:

1. Applicable nominal diameter: 15-200mm
2. Flow rate: 2-320L/min
3. Filtration accuracy: 5-400um
4. Filter material: phosphor bronze mesh, stainless steel smooth mesh, twill mesh, mat mesh
5. Working temperature: 95 ° C
6. Working pressure: 0.8Mpa

This sample picture is for two layers.
One layer is for mild steel 20mesh for support.
The other one is stainless steel 304 for filtering .

Extruder Screens/ Wire Mesh Screen Filter

Product Specifications
STANDARD EXTRUDER SCREEN SPECIFICATION
MESH	WIRE DIA. MM	APERTURE SIZE MM	OPEN AREA
10 X 10	0.711	1.829 MM	51.8
14 X 14	0.457	1.357 MM	55.9
16 X 16	0.457	1.131 MM	50.7
20 X 20	0.559	0.711 MM	31.4
20 X 20	0.457	0.813 MM	41.0
24 X 24	0.376	0.682 MM	41.4
30 X 30	0.376	0.531 MM	34.2
30 X 30	0.310	0.536 MM	40.0
40 X 40	0.274	0.361 MM	32.3
50 X 50	0.193	0.335 MM	43.6
60 X 60	0.193	0.230 MM	29.8
80 X 80	0.122	0.196 MM	37.9
100 X 100	0.102	0.152 MM	36.0
120 X 120	0.091	0.120 MM	31.8
150 X 150	0.071	0.088 MM	29.6
200 X 200	0.050	0.077 MM	36.76
250 X 250	0.040	0.062 MM	36.76
300 X 300	0.040	0.045 MM	27.83
325 X 325	0.035	0.043 MM	30.49
400 X 400	0.028	0.036 MM	31.25
500 X 500	0.025	0.026 MM	25.79

Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L

Filter Mesh,Filter Extruder Mesh,Plastic particle filter Use occasions:

1. Suitable for filtration of various types of thin oil lubrication devices
2. Suitable for filter system of filter press, ship, diesel engine, etc.
3. Applicable to various industrial fields such as petroleum, electric power, chemical industry, metallurgy, etc. to improve the cleanliness of oil.

Filter material: stainless steel woven mesh, black silk cloth, galvanized wire mesh and other metals. There are single layer, multi-layer; according to the shape is divided into round, rectangular, waist, oval and so on.

The implementation standard of the filter: the metal filter is strictly produced according to the GB5330-85 standard.
Process: Carbon-copper net is made of high-quality iron wire woven dense mesh and cloth. The weave is divided into plain and twill. It can also be stamped into various filter sheets according to the requirements of use, and can also be spot welded with a plurality of different mesh filters. Our company can supply a variety of filters, including single and multi-layer. Multi-layer mesh has two layers, three layers, or processed according to customer requirements. We can also process rectangular, square mesh and ring mesh belts of various materials and sizes. Welcome to the specific specifications.
Applications: Filters, filter assembly products (may be referred to as filters), suitable for distillation, absorption, evaporation, filtration, etc. in petroleum, chemical, light industry, pharmaceutical, metallurgy, machinery, marine, automotive tractors, etc. The process eliminates droplets and droplets entrained in steam or gas, and as an air cleaner on a vehicle tractor.

Our factory is dedicated to serve you and ask for your inquiry.
