SUS304 Johnson V Wire Screen Wrap Screen For Oil Industry Petrochemical
  • name
  • name
  • name
  • name

SUS304 Johnson V Wire Screen Wrap Screen For Oil Industry Petrochemical

MOQ: 1 EA
Price: Negotiated
Standard Packaging: Plastic Film And Wooden Case
Delivery Period: Around 10 Days
Payment Method: T/T, Western Union, MoneyGram
Supply Capacity: 800EA Per Week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
ISO,CCC
Model Number
BM-Johnson filter 02
Name:
Johnson V Wire
Material:
SUS304
Type:
Johnson Screen
Screen Gap:
0.02-60Mm
Usage:
Oil Industry,Petrochemical
Shape:
Filter Screen Tube
Highlight:

sus304 johnson v wire screen

,

sus304 johnson wire screen

,

petrochemical johnson wire screen

Product Description

Johnson Screen Well Screen V wire wrap screen for Oil industry






Materials: stainless steel 302,304,316,304 L, 316L sieve wire
Outside diameter: 4 inches, 6 inches, 8 inches, 10 inches, 12 inches, etc. (20mm - 1000mm)
Slot: 0.1 mm - 35mm deviation: + 0.05 mm
Standard length: 50-6000mm
End connections: Weld or threaded
Sieve silk specification: 2.2x 3.0 mm, 2.3 * 3.0 mm, 3.0 * 4.6 mm, 3.0 * 5.0 mm, etc
The specification: torre 3.8 mm / 22 root, 380 mm / 32 root, 380 mm / 48 root, 380 mm / 50 root



Johnson Net, the English name Johnson Screen, is divided into: screen tube and sieve plate. Used for filtration of petrochemical filtration equipment, coal washing plants, well drilling, sewage treatment, food, etc.



Johnson Screen,V wire wrap screen Detailed specification:
Slot:0.1 mm - 35mm
length: 50-6000mm
End connections: Weld or threaded
OD:20mm-1000mm

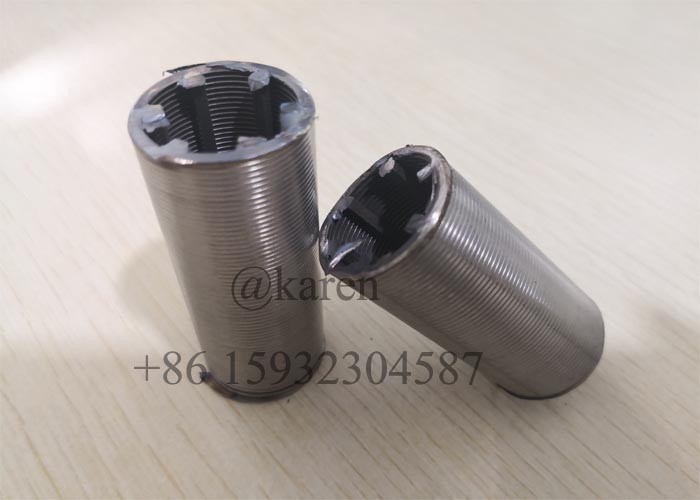

SUS304 Johnson V Wire Screen Wrap Screen For Oil Industry Petrochemical 0



Now we introduce Wire Wrap Screen Pipe



Wire wrapped screen pipe, also known as water pump fitting network pipe water filtration, filter pipe stratiner pipe, filter water well screen, as the name suggests is screening filtration. Can be used with deep well pumps and submersible pumps. At present, water wells for domestic household water use do not use such filter tubes. First, because of the high cost, second, domestic water wells have not yet reached the sand layer, and only use some hot spring companies because their wells are several kilometers deep.
Most current screens use trapezoidal wire.

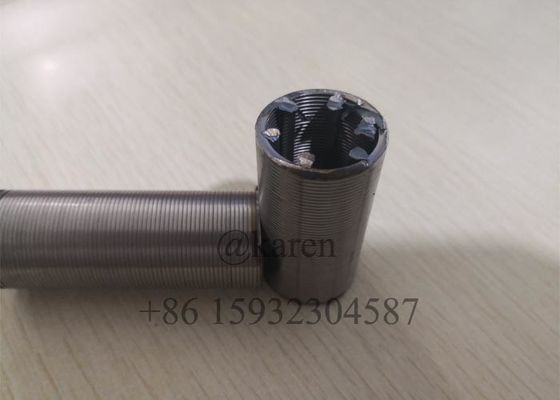

SUS304 Johnson V Wire Screen Wrap Screen For Oil Industry Petrochemical 1


There are many benefits to using trapezoidal silk:

1 The V-shaped profile structure avoids clogging and ensures smooth circulation
2 Continuous pores can be effectively used for a long time.
3 trapezoidal wire filter pipe is easy to backwash, long service life, safe and reliable, low overall cost
4 The trapezoidal water filter has a solid structure, high porosity and accurate gap size.
5 The continuous gap greatly increases the water area, so it is better to contact with the aquifer.

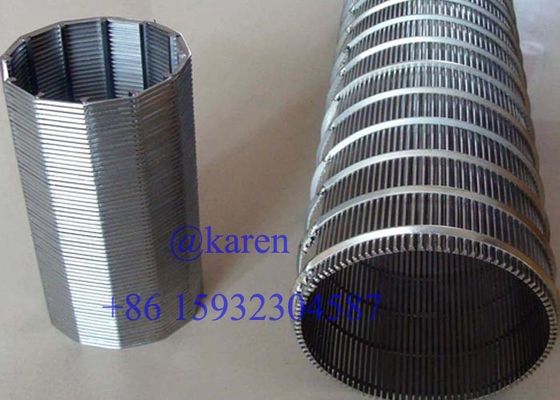

SUS304 Johnson V Wire Screen Wrap Screen For Oil Industry Petrochemical 2



Technical Support and Design Assistance

  • Sand analysis of formation materials
  • Screen size recommendations
  • Screen installation suggestions
  • Well construction consultation

Any interesting,pls let us talk more details.Directly call me or email me.









Tags:

johnson v wire screen,

wedge wire screen,

johnson wire screen
