| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CCC |
| Model Number: | 260Mesh |
| Minimum Order Quantity: | 1 Roll |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-10 Days After Get The Deposite |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 Square Meters Per Week |
| Product Name: | Reverse Dutch Wire Mesh Belt | Material: | Stainless Steel Wire |
|---|---|---|---|
| Key Word: | Auto Filter Belt | Mesh Count: | 260x40 |
| Technique: | Woven | Width: | 127Mm 157Mm |
| Length: | 10M,20M,40M | HS Code: | 73141400 |

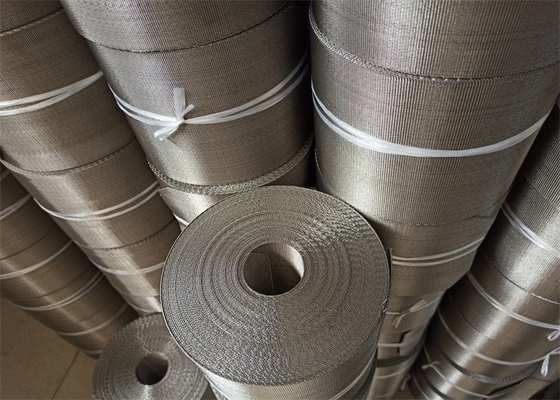

260/40 Extruder Filter Screen Reverse Dutch Filter Mesh Belt
Extruder Filter Screen Reverse Dutch Filter Mesh Belt Technical specifications
| Product Name | 260/40 Extruder Filter Screen Reverse Dutch Filter Mesh Belt |
|---|---|
| Certificate | SGS |
| Mesh count | 72/15 , 120/15, 132/17 / 150/17,152/24,170/17,180/18,200/40,260/40 etc |
| Technique | Dutch Reversed Woven Wire Mesh |
| Material | SS201,302,304 etc |
| Width | can be cutted into 90-400mm as your request, or cutting into round discs |
| Application | Plastic extruder filter screen |
| Rolls length | 10/20rolls |
Extruder Filter Screen Reverse Dutch Filter Mesh Belt Detailed Specification
| Specification | Diameter(mm) | Width(mm) |
| 72/15 | 0.45x0.55 | 97----400 |
| 120/16 | 0.35x0.45 | 97----400 |
| 132/17 | 0.30x0.45 | 97----400 |
| 152/24 | 0.30x0.40 | 97----400 |
| 160/18 | 0.28x0.45 | 97----400 |
| 200/40 | 0.17x0.27 | 97----400 |
| 260/40 | 0.15x0.27 | 97----400 |
| 300/40 | 0.15x0.25 | 97----400 |
| 400/120 | 0.058x0.1 | 97----400 |
| Other sizes can be customized | ||
Extruder Filter Screen Reverse Dutch Filter Mesh Belt Features
Extruder Filter Screen Reverse Dutch Filter Mesh Belt Usage
