90 Micron Automatic Belt Melt Extruder Filter Screen 45M 50M H 308Mm Copper Clad
  • name
  • name

90 Micron Automatic Belt Melt Extruder Filter Screen 45M 50M H 308Mm Copper Clad

MOQ: 3 Rolls
Price: Negotiation
Standard Packaging: Water-Proof Plastic Film And Wooden Case
Delivery Period: 7-10 Days After Getting The Deposite
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 600 Rolls per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CCC,CE
Model Number
BM-filterscreen
Product Name:
Copper Clad Filter Screen
Length:
50M 45M 40M As Required
Mesh Count:
72 / 17 , 132 / 17 , 152 / 24, 260 / 40 Etc
Width:
308Mm 203Mm
Pressure:
200 Bar
Surface Treatment:
Copper Clad
Usage:
For Extruder Plastic Production
MOQ:
3 Rolls
Highlight:

extruder filter screen 45m

,

belt melt extruder filter screen

,

45m screen filter mesh

Product Description

90 Micron Automatic Belt Melt Filter Length 45M 50M H 308Mm Copper Clad



Automatic Belt Melt Filter Description

Product name Automatic Belt Melt Filter

Material		 Warp: Copper weld wire(tensile strength 2500N/mm2)
Weft: Galvanized wire(tensile strength 550N/mm2)

Wire diameter		 Warp: 0.25mm
Weft: 0.35mm
Weft can be flat wire: 0.26mmx0.38mm

Mesh count		 110 x 17 MESH 110 x 15 MESH
110 x 13 MESH 110 x 11 MESH
Tolerance (±1mesh),or customized
Width 308mm (+0-2mm); 230mm (+0-2mm),or customized
Length 40m, 50m, 80m,or customized
Roll diameter 60mm - 80mm, or as request





Automatic Belt Melt Filter General Sizes:



Material   SS302, SS304, SS304L, SS316, SS316L, Copperetc
Length 50M 45M 40M As Request
Width 308Mm 203Mm





Automatic Belt Melt Filter Advantages



Clean. Very high filtration fineness.

Up to three filter belts can simultaneously be used. This allows an exact adjustment of different filter screen finenesses.



Permanent. Extruder operation during screen belt feed.

By storing temporarily the plastics melt, also during the screen feed, the extruder continues running and guarantees high process reliability.



Effective. Very high throughput rates.

The new support plate design – consisting of grid and die plate – guarantees higher throughput, thus less pressure generation and more gentle processing.



Perfect. Homogeneity of the plastics melt.

The optimized flow channel improves the melt flow considerably again without material stress.



Efficient. Very low operating costs

Besides the automatic operation of the filter with high plastics throughput, the use of filter belts with dutch weave meshes ensures low operating costs at high output.



Automatic Belt Melt Filter Characters



Depending on the customer requirement, different materials, dimensions, weaves and tensile stren possible.



1

Filtration fineness: 50 μm to 950 μm
2

Filter belt roll: 20 – 25 kg, roll length up to 50 m
3

Simultaneous use of up to three filter belts with different mesh size is possible.

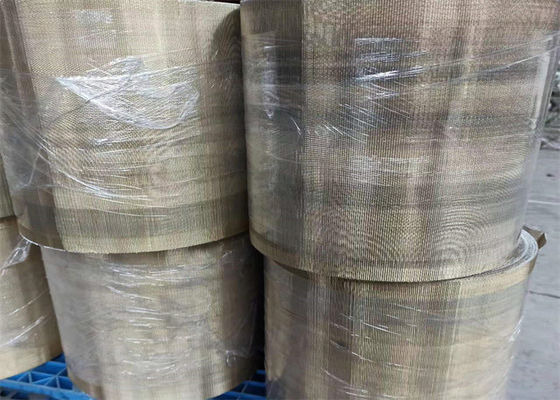

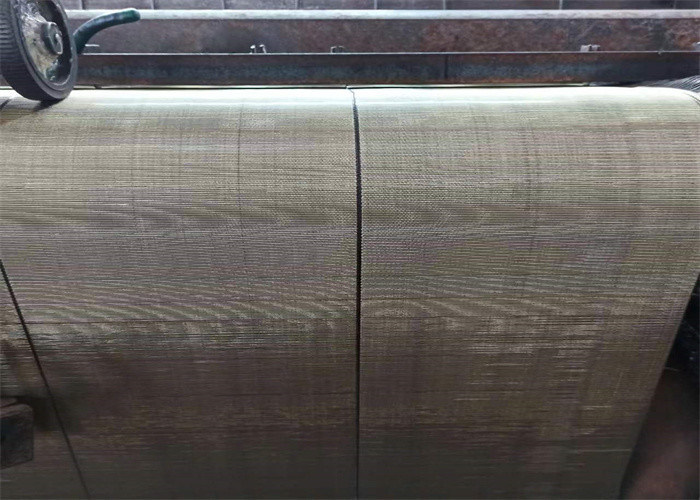

Automatic Belt Melt Filter Picture shown



90 Micron Automatic Belt Melt Extruder Filter Screen 45M 50M H 308Mm Copper Clad 0
