| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 5000 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 Days After Getting Deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Per Week |
| Item: | Welded Wire Mesh Panel | Material: | Galvanized |
|---|---|---|---|
| Opening Size: | 50x50Mm | Wire Diameter: | 3.63Mm |
| Panel Size: | 1000x2000Mm | Weight: | 6Kgs/PC |
| Hole Shape: | Square Holes | Place Of Origin: | China |
| Package: | Pallets |

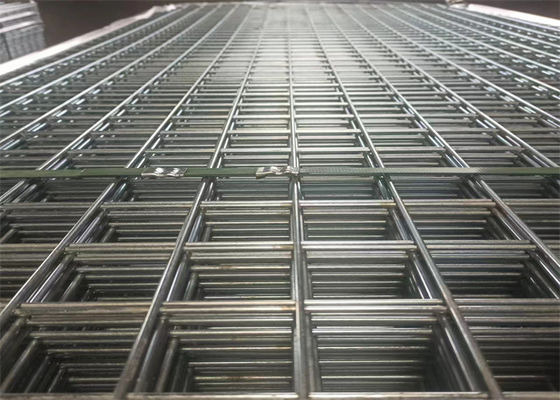

50x50 Mm Hole Size Galvanized Welded Wire Mesh Panel
Welded Wire Mesh Panel Description
Galvanized Wire Mesh is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.
Welded Wire Mesh Panel Technique Specification
| Specification Of Welded Wire Mesh Panel | |||
| Opening | Wire diameter | ||
| Inch | mm | BWG | mm |
| 1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
| 2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
| 2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
| 3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
| 3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
| 4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
| 4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
| 5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
| 6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
| Material: Low carbon steel wire | |||
| Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated | |||
| Note: Special size and specifications can be made according to customers requires. | |||
Welded Wire Mesh Panel Features
Smooth surface. Firm structure. Corrosion resistance. Aging resistance. Weather resistance. Long service life.
Welded Wire Mesh Panel Applications
It is widely used on building, food, agriculture etc. For example, it is useded on reinforced concrete construction, floor slabs reinforcement, brick wall reinforcement, floor warming etc.
Packing Details
FAQ
1.what's your payment term ?
our payment term is 30% T/T in advance,the balance against the copy of the B/L or L/C at sight.for other payment term,we can also discuss.
2.how is your deliver time?
we will check our stock to offer you the exact time first.usually,we will finish the production within 20-25days after we
receiving the deposit.
3.Are you a manufacturer or a trader?
we are the manufacturer,so we can give you the more competitive price.
4.could you provide the free sample?
we can bear the samples charges,but you should pay for the courier charge. After we make the order,we can deduct the courier charge from the total amount.
5. Are you the steel wire manufacture?
Yes. We are the steel wire factory in Hengshui China, and established in 1998. We product all kind steel wire and steel wire fence and mesh.
6. Where is your factory located? And how can I visit your factory?
Our factory is located Anping County, Hebei provice,china,about 265.9km to Beijing Capital international airport.
7. What is your main market and customers?
Our wire and wire mesh products are sold to oversea market. Our customers are mainly in USA, Canada, UK, Russia, Turkey, Germany,South Korea, Brazil, others South America countries and many Asian country.
