Major in Decorative Wire Mesh, Rope Mesh, Metal Curtain Mesh, Extruder Screen Mesh,Gabions Mesh, panels etc.
Mutual trust, Mutual Development And Mutual Profit!
Major in Decorative Wire Mesh, Rope Mesh, Metal Curtain Mesh, Extruder Screen Mesh,Gabions Mesh, panels etc.
Mutual trust, Mutual Development And Mutual Profit!
 |
| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE |
| Minimum Order Quantity: | 5000 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 Days After Getting Deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Per Week |
| Item: | Security 358 Fence Panel | Material: | Metal |
|---|---|---|---|
| Color: | Black,Green Or Customized | Post Height: | 1200Mm,1800Mm,2400Mm,etc |
| Mesh Size: | 76.2Mm X 12.7Mm | Post Material: | Steel |
| Post Size: | 60 X 60Mm,80x80Mm,100x100Mm | Post Surface Treatment: | Powder Coating |
| Wire Diameter: | 3.2mm,3.5mm,4.0Mm 5.0Mm | Surface Treatment: | Galvanized Or Powder Coating |
| Post Thickness: | 2Mm | Package: | Pallets |

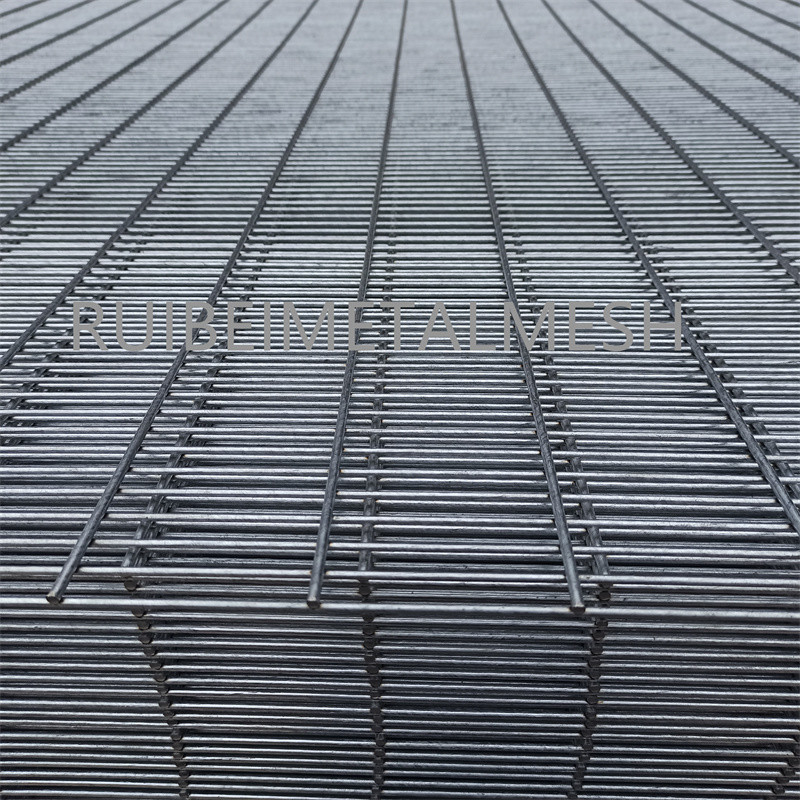

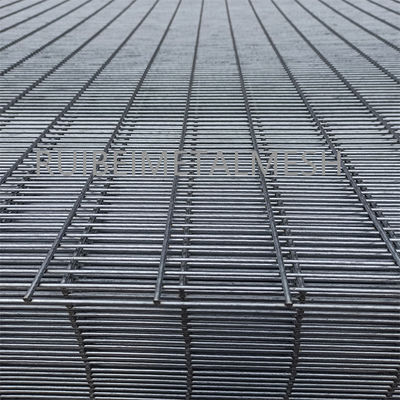

Customized Galvanized Security 358 Fence Panel Commercial Metal Anti Climb
Anti Climb Security Fence Detail Description

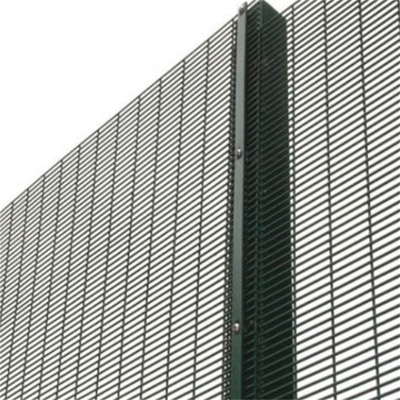

High security fencing , Prison Mesh Fencing or 358 Mesh Fence as it is also known, is a highly robust steel Mesh Fencing system.
It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers
through the apertures, to ultimately climb the fencing.
Product Specification
|
Wire thickness |
3.0mm,3.5mm,4.0mm |
|
Hole size |
76.2*12.7mm |
|
Width |
2000mm,2200mm,2500mm |
|
Height |
1000mm,1200mm,1500mm,1800mm,2000mm |
|
Post height |
1400mm,1600mm,2000mm,23000mm,2500mm |
|
Post type |
Square fence post 60*60*2.0/2.5mm,80*80*2.5/3.0mm |
|
Fitting |
Flat bar,metal clips |
|
Surface treatment |
Electric galvanized/hot dipped galvanized then powder coated,hot dipped galvanized |
| Fence height (m) | Panel size (Height × Width) (mm) |
Fence Post (Height × Size × Thick) (mm) |
Clamp Bar (Height × Width × Thickness) (mm) |
Middle/ corner Clamp No. (pcs) |
|---|---|---|---|---|
| 2 | 2000 × 2515 | 2700 × 60 × 60 × 2.5 | 2000 × 60 × 5.00 | 7 or 14 |
| 2.4 | 2400 × 2515 | 3100 × 60 × 60 × 2.5 | 2400 × 60 × 5.00 | 9 or 18 |
| 3 | 3000 × 2515 | 3800 × 80 × 80 × 2.5 | 3000 × 80 × 6.00 | 11 or 22 |
| 3.3 | 3300 × 2515 | 4200 × 80 × 80 × 2.5 | 3300 × 80 × 6.00 | 12 or 24 |
| 3.6 | 3600 × 2515 | 4500 × 100 × 100 × 3.0 | 3600 × 100 × 7.00 | 13 or 26 |
| 4.2 | 4200 × 2515 | 5200 × 100 × 100 × 4.0 | 4200 × 100 × 8.00 | 15 or 30 |
| 4.5 | 4500 × 2515 | 5500 × 100 × 100 × 5.0 | 4500 × 100 × 8.00 | 16 or 32 |
| 5.2 | 5200 × 2515 | 6200 × 120 × 120 × 5.0 | 5200 × 100 × 8.00 | 18 or 36 |
Product Panel Sizes
358 Anti climb security fence Produce process
Purchase the raw material wire--Zn/Ai coating test--cutting--welding panel--powder coating or hot dip galvanized--packing--Loading
Post--cutting--punching--powder coating--packing--loading
Clips--packing--loading
Product Application
1 Bridge anti-climb guarding & guard safety screening
2 Sub-station Security Fencing
3 Psychiatric hospital security fencing
4 Prison Security Fencing
5 Factory Machine guards
6 Walkway security fencing
7 Airport security fencing
Prison Welded Mesh Fence Features:
|
High strength welded at each intersection. |
|
Anti-climbing: more small openings, no toe or finger holds. |
|
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters. |
|
Powder coating ensure a long service life. |
| Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection syste |
Packing Details
1.panel with pallet and post bulk 2.panel and post all packing with pallet
Product Details
