Galvanized Steel Wire Extruder Filter Screen Dutch Woven Belt Type Continuous 308Mm 230Mm
  • name
  • name

Galvanized Steel Wire Extruder Filter Screen Dutch Woven Belt Type Continuous 308Mm 230Mm

MOQ: 3 Rolls
Price: Negotiation
Standard Packaging: Water-Proof Plastic Film And Wooden Case
Delivery Period: 7-10 Days After Getting The Deposite
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 600 Rolls per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CCC,CE
Model Number
BM-filterscreen
Product Name:
Metal Net
Surface Treatment:
Galvanized
Height:
308Mm 230Mm
Length:
50M 80M 100M As Required
Usage:
For Extruder Plastic Production
Tensile Strength:
1850Mpa To 2150Mpa
MOQ:
3 Rolls
Highlight:

galvanized screen filter mesh

,

galvanized extruder filter screen

,

woven screen filter mesh

Product Description

Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh




Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Basic Information



Product name

Copper clade steel wire woven belt type filter screen


Material

Warp: Copper weld wire(tensile strength 2500N/mm2)
Weft: Galvanized wire(tensile strength 550N/mm2)


Wire diameter

Warp: 0.25mm
Weft: 0.35mm
Weft can be flat wire: 0.26mmx0.38mm


Mesh count

110 x 17 MESH 110 x 15 MESH
110 x 13 MESH 110 x 11 MESH
Tolerance (±1mesh),or customized

Width

308mm (+0-2mm); 230mm (+0-2mm),or customized

Length

40m, 50m, 80m,or customized

Roll diameter

60mm - 80mm, or as request




Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Description:



Reverse Dutch weave is the reverse of plain Dutch weave.The weft wires' diameter are larger than the warp wires.Consequently,the warp mesh count is more than the weft mesh count.Smaller and closer warp wires together with the weft wires form triangular shaped transversal openings.The reverse Dutch weave has a very high level of mechanical load.





Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Specification Table :



mesh count wire dia.(mm) mesh thickness(mm)
warp weft warp warp
72 15 0.05 0.50 0.18
132 17 0.35 0.45 0.14
152 24 0.31 0.35 1.04
260 40 0.15 0.52 0.69



Mesh Wire dia. Micron (um) Size (W X L)
110/8 0.22/0.45 400 230mm x 50m 308mm x 50m
110/10 0.22/0.45 300 230mm x 50m 308mm x 50m
110/13 0.22/0.35 250 230mm x 50m 308mm x 50m
110/17 0.22/0.35 200 230mm x 50m 308mm x 50m
110/20 0.22/0.30 90 230mm x 50m 308mm x 50m

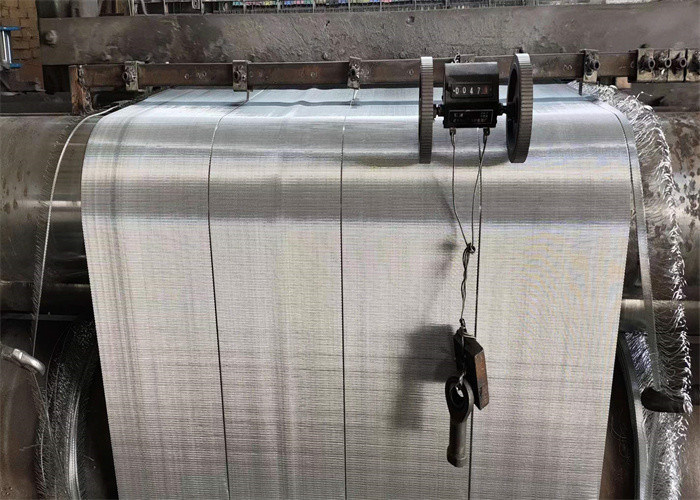

Production Processing

Galvanized Steel Wire Extruder Filter Screen Dutch Woven Belt Type Continuous 308Mm 230Mm 0

Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Filter Benifits



Special process makes the safe edges
More resistant to impact and abrasion;
High tensile strength avoids breaking;
Extremely strong,easy clean and has a high flow rate.



Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Application

  1. Automaticcontinuous screen that are used with screen changer

  2. polymer melt filtration in every segment of plastics processing including: blown film, blow molding, sheet and film extrusion, filaments & fibers, pipe and profile, pelletizing, BIAX (BOPP and BOPS),

  3. and are designed to be used with all families of thermoplastics, including Polyethylene (LDPE, LLDPE and HDPE) Polystyrene (PS, HIPS), Polycarbonate, ABS, Acrylic, Flexible PVC, Nylon (PA 6, PA 66, PA 11) and Polyesters, as well as a wide range of engineering resins.



Galvanized Steel Wire Extruder Filter Screen Dutch Woven Belt Type Continuous 308Mm 230Mm 1



Galvanized Steel Wire Extruder Filter Screen Dutch Woven Belt Type Continuous 308Mm 230Mm 2
