| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CCC,CE |
| Model Number: | BM-filterscreen |
| Minimum Order Quantity: | 3 Rolls |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Water-Proof Plastic Film And Wooden Case |
| Delivery Time: | 7-10 Days After Getting The Deposite |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 600 Rolls per week |
| Product Name: | Metal Net | Surface Treatment: | Galvanized |
|---|---|---|---|
| Height: | 308Mm 230Mm | Length: | 50M 80M 100M As Required |
| Usage: | For Extruder Plastic Production | Tensile Strength: | 1850Mpa To 2150Mpa |
| MOQ: | 3 Rolls |

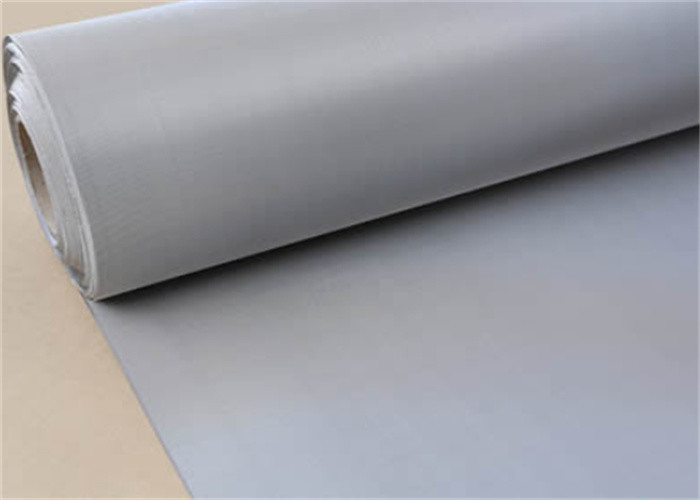

China Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh H 230Mm
Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Basic Information
|
Product name |
Copper clade steel wire woven belt type filter screen |
|
|
Warp: Copper weld wire(tensile strength 2500N/mm2) |
|
|
Warp: 0.25mm |
|
|
110 x 17 MESH 110 x 15 MESH |
|
Width |
308mm (+0-2mm); 230mm (+0-2mm),or customized |
|
Length |
40m, 50m, 80m,or customized |
|
Roll diameter |
60mm - 80mm, or as request |
Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Description:
Reverse Dutch weave is the reverse of plain Dutch weave.The weft wires' diameter are larger than the warp wires.Consequently,the warp mesh count is more than the weft mesh count.Smaller and closer warp wires together with the weft wires form triangular shaped transversal openings.The reverse Dutch weave has a very high level of mechanical load.
Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Specification Table :
| mesh count | wire dia.(mm) | mesh thickness(mm) | ||
| warp | weft | warp | warp | |
| 72 | 15 | 0.05 | 0.50 | 0.18 |
| 132 | 17 | 0.35 | 0.45 | 0.14 |
| 152 | 24 | 0.31 | 0.35 | 1.04 |
| 260 | 40 | 0.15 | 0.52 | 0.69 |
| Mesh | Wire dia. | Micron (um) | Size (W X L) |
| 110/8 | 0.22/0.45 | 400 | 230mm x 50m 308mm x 50m |
| 110/10 | 0.22/0.45 | 300 | 230mm x 50m 308mm x 50m |
| 110/13 | 0.22/0.35 | 250 | 230mm x 50m 308mm x 50m |
| 110/17 | 0.22/0.35 | 200 | 230mm x 50m 308mm x 50m |
| 110/20 | 0.22/0.30 | 90 | 230mm x 50m 308mm x 50m |

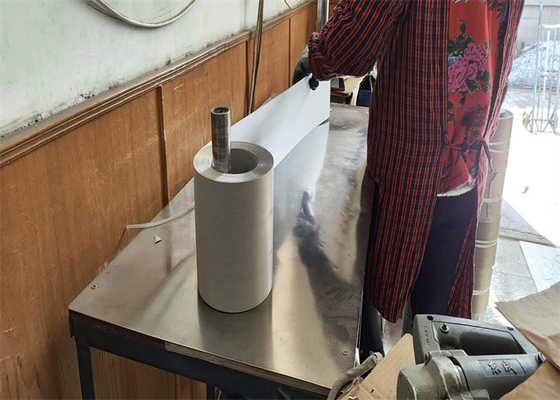

Production Processing
Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Filter Benifits
| Special process makes the safe edges |
| More resistant to impact and abrasion; |
| High tensile strength avoids breaking; |
| Extremely strong,easy clean and has a high flow rate. |
Galvanized Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Application
Automaticcontinuous screen that are used with screen changer
polymer melt filtration in every segment of plastics processing including: blown film, blow molding, sheet and film extrusion, filaments & fibers, pipe and profile, pelletizing, BIAX (BOPP and BOPS),
and are designed to be used with all families of thermoplastics, including Polyethylene (LDPE, LLDPE and HDPE) Polystyrene (PS, HIPS), Polycarbonate, ABS, Acrylic, Flexible PVC, Nylon (PA 6, PA 66, PA 11) and Polyesters, as well as a wide range of engineering resins.
