Copper Wire Screen Changer Continous Belt Extruder Filter Screen 110 Mesh 308Mm 230Mm

MOQ:	3 Rolls
Price:	Negotiation
Standard Packaging:	Water-Proof Plastic Film And Wooden Case
Delivery Period:	7-10 Days After Getting The Deposite
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	600 Rolls per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CCC,CE

Model Number

BM-filterscreen

Product Name:

Copper Clad Steel Wire Continous Filter Belt Screens

Surface Treatment:

Copper Clad

Width:

308Mm 203Mm

Length:

50M 45M 40M As Required

Pressure:

200 Bar

Usage:

For Extruder Plastic Production

3 Rolls

Highlight:

continous belt extruder filter screen

extruder filter screen 110 mesh

308mm screen filter mesh

Product Description

Copper Wire Screen Changer Continous Filter Belt Screens 110 Mesh 308Mm 230Mm Filter Mesh

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Basic Information

Product name	Copper clade steel wire woven belt type filter screen
Material	Warp: Copper weld wire(tensile strength 2500N/mm2) Weft: Galvanized wire(tensile strength 550N/mm2)
Wire diameter	Warp: 0.25mm Weft: 0.35mm Weft can be flat wire: 0.26mmx0.38mm
Mesh count	110 x 17 MESH 110 x 15 MESH 110 x 13 MESH 110 x 11 MESH Tolerance (±1mesh),or customized
Width	308mm (+0-2mm); 230mm (+0-2mm),or customized
Length	40m, 50m, 80m,or customized
Roll diameter	60mm - 80mm, or as request

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Description:

Reverse Dutch weave is the reverse of plain Dutch weave.The weft wires' diameter are larger than the warp wires.Consequently,the warp mesh count is more than the weft mesh count.Smaller and closer warp wires together with the weft wires form triangular shaped transversal openings.The reverse Dutch weave has a very high level of mechanical load.

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Specification Table :

mesh count		wire dia.(mm)		mesh thickness(mm)
warp	weft	warp	warp	mesh thickness(mm)
72	15	0.05	0.50	0.18
132	17	0.35	0.45	0.14
152	24	0.31	0.35	1.04
260	40	0.15	0.52	0.69

Production Processing

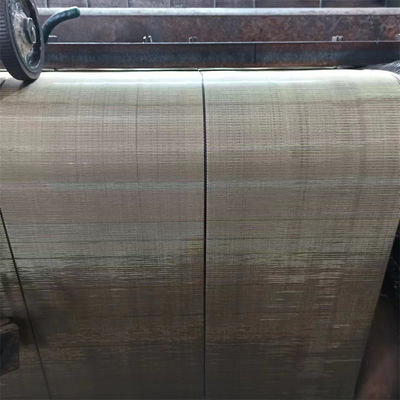

Copper Wire Screen Changer Continous Belt Extruder Filter Screen 110 Mesh 308Mm 230Mm 0

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Benifits

Special process makes the safe edges

More resistant to impact and abrasion;

High tensile strength avoids breaking;

Extremely strong,easy clean and has a high flow rate.

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Application

Automaticcontinuous screen that are used with screen changer
polymer melt filtration in every segment of plastics processing including: blown film, blow molding, sheet and film extrusion, filaments & fibers, pipe and profile, pelletizing, BIAX (BOPP and BOPS),
and are designed to be used with all families of thermoplastics, including Polyethylene (LDPE, LLDPE and HDPE) Polystyrene (PS, HIPS), Polycarbonate, ABS, Acrylic, Flexible PVC, Nylon (PA 6, PA 66, PA 11) and Polyesters, as well as a wide range of engineering resins.

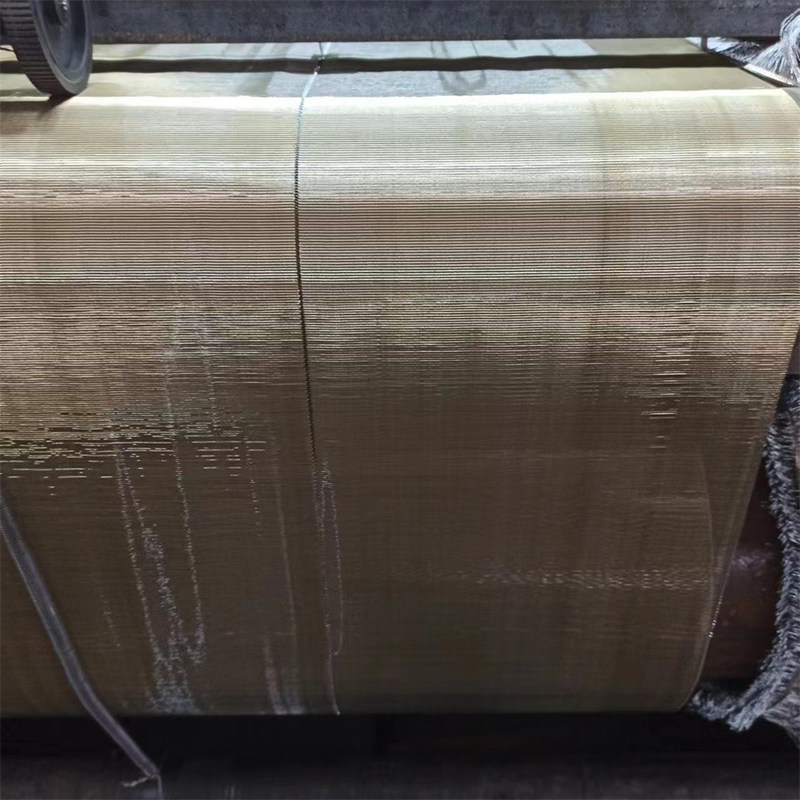

Copper Wire Screen Changer Continous Belt Extruder Filter Screen 110 Mesh 308Mm 230Mm 1

Copper Wire Screen Changer Continous Belt Extruder Filter Screen 110 Mesh 308Mm 230Mm 2

Copper Wire Screen Changer Continous Belt Extruder Filter Screen 110 Mesh 308Mm 230Mm 3
