| Place of Origin: | CHINA |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-GABIONS010 |
| Minimum Order Quantity: | 1 basket |
|---|---|
| Price: | $26.3 - $189.2per basket |
| Packaging Details: | plastic and wooden pallet |
| Delivery Time: | 14-20 days after get the deposite |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 200 unit per week |
| Material: | Galvanized | Mesh Type: | Welded Gabions |
|---|---|---|---|
| Wire Dia: | 3.0mm-6.0mm | Opening Size: | 75*75mm,50*50mm |
| Basket Size: | 2000*1000*500mm | Mesh Tensile: | 380N/mm2 - 550N/mm2 |
| Application: | Gabions, Garden, Retaining Wall, Fence, Shore Protection Etc. | Fishing: | Heavy Duty Galvanized Or Galfan Galvanized |
| Packing: | Wooden Pallet | Transport: | By Sea |
| Hole Shape: | Square |
Gabion Basket China/Gabion 5mm Wire Mesh/Welded Mesh Gabion Baskets
Welded Gabions,Gabion Basket are widely used as temporary walls or decorative walls with stones, shells or sand in it.
decorative wall in residence (it can be decorated with colorful stones, colorful shells or plants).
temporary wall in special place (damming the river, temporary protection, with normal stones in it).
Welded Gabion components: Welded Gabions is made up of welded panels and lacing wire.
Material: Galfan wire, Hot-dipped galvanized wire.
Spec:
Material:Hot dip galvanized
Aperture size:75*75mm,of course,50*50mm,100*100mm,50*100mm,75*150mm,150*150mm also could be made as request.
Gabion Basket/Gabion Box size:2M*1M*0.5M,1M*1M*1M,2M*1M*1M,could be made as client request
| Gabion Box Size | 1x1*0.5m | 1x1x1m | 1.5x1x1m | 2x1x1m |
| Wire Diameter | 3mm | 4mm | 5mm | 6mm |
| Double horizontal wires style is available | ||||
| Mesh Hole Size | 50x50mm | 50x100mm | 75x75mm | 75x150mm |
| Other specifications are available | ||||

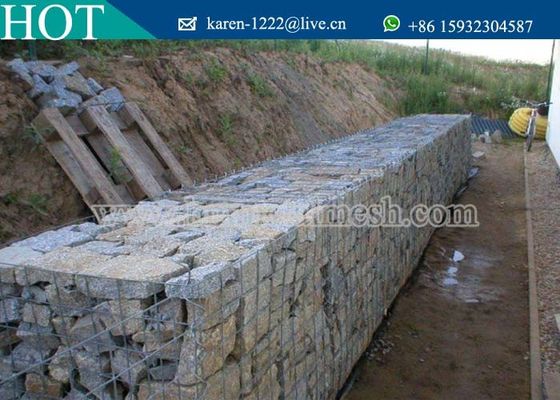

Welded gabion Baskets are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes
Major Applications of Welded Gabion Baskets:
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
Mesh Tensile strength: 380N/mm2 - 550N/mm2
Diameter: 3.0mm-6.0mm
Finishing: heavy duty galvanized or galfan galvanized Coating weight: 245g-350g Lacer and spacer: standard.Packing: Flat packed on pallet.
Gabion Baskets Advantages:
Easy to install
High Zinc Coating
High Security
Can be made into any size for decotation
