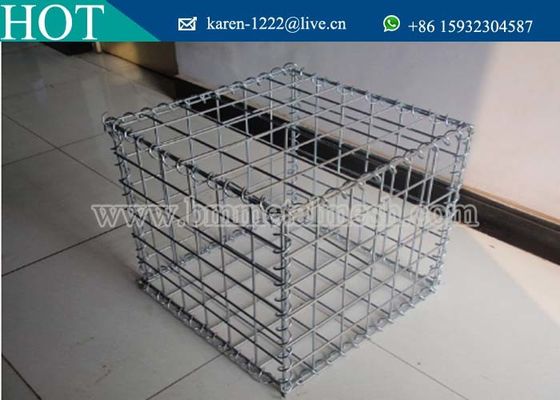

Welded Mesh Gabions For Cladding Walls

Welded Mesh Gabions For Cladding Walls

    • Welded Mesh Gabions For Cladding Walls
    • Welded Mesh Gabions For Cladding Walls
    • Welded Mesh Gabions For Cladding Walls
    • Welded Mesh Gabions For Cladding Walls
  • Welded Mesh Gabions For Cladding Walls

    Product Details:

    Place of Origin: CHINA
    Brand Name: BM
    Certification: CE,CCC
    Model Number: BM-GABIONS013

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 basket
    Price: $26.3 - $189.2per basket
    Packaging Details: plastic and wooden pallet
    Delivery Time: 14-20 days after get the deposite
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 200 unit per week
    Contact Now
    Detailed Product Description
    Material: Galvanized Mesh Type: Welded Gabions
    Wire Dia: 3.0mm-6.0mm Opening Size: 75*75mm,50*50mm
    Basket Size: 2000*1000*500mm Mesh Tensile: 380N/mm2 - 550N/mm2
    Application: Gabions, Garden, Retaining Wall, Fence, Shore Protection Etc. Fishing: Heavy Duty Galvanized Or Galfan Galvanized
    Packing: Wooden Pallet Transport: By Sea
    Hole Shape: Square

    Welded Mesh Gabions For Cladding Walls


    Specification of Welded Mesh Gabions for Cladding Walls:
    Structures: Welded mesh panels square baskets or rectangular baskets. Fixed with spring steel lacing wire.
    Wire Diameter: 3mm-5mm.
    Mesh Opening: 2''x2'',3''x3'',4''x4'',and more.
    Surface treatment: electro galvanized, hot dip galvanized, PVC spraying, PVC soaked, Galfan coated and so on. The welded wire mesh panels are coated before or after welded at options at different cost.


    Gabion Basket Sizes and Holding Capacity:

    Nominal gabions basket size (m) No. of diaphragms
    for reinforcing(no.)
    Capacity per basket
    1.0x1.0x0.5   0.50
    1.0x1.0x1.0   1.00
    1.5x1.0x0.5   0.75
    1.5x1.0x1.0   1.50
    2.0x1.0x0.5 1 1.00
    2.0x1.0x1.0 1 2.00
    3.0x1.0x0.5 2 1.50
    3.0x1.0x1.0 2 3.00
    4.0x1.0x0.5 3 2.00
    4.0x1.0x1.0 3 4.00



    Specification of Welded Wire Mesh Panels for Making of Such Gabions:


    Welded Mesh size 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or
    as your request. Square hole or rectangular hole.
    Mesh Panel Size 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m, 2*2m, 2.21*2.13m and more.
    Also supplied in square panel or rectangular panel for making
    of different shapes of gabions boxes.
    Finish Electro galvanized after welded Hot dipped galvanized welded PVC coated after welded



    Welded Mesh Gabions are also Used:
    Welded gabions have a wide range of uses besides architectural uses. They are used in slope support, foundation pit, mountain rock face mesh protection gabion, slope vegetation (green), railroad highway isolation guarding block. They are also made into cages, nets mats, scour protection of rivers, levees and seawalls, reservoirs and river closure with a cage. For control of river water flow, flood control, massive soil erosion control. By using of gabions, they can make the river banks receive permanent or semi-permanent protection.


    Welded Mesh Gabions For Cladding Walls
