| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $0.33-$3.12per piece |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Material: | SUS304,316,316L | Filtering Rate: | 800 Micron |
|---|---|---|---|
| Dia: | 80mm,175mm,250mm,as Client Request | Mesh Type: | Plain Weave And Twill Weave |
| Layers: | Single Layer,2,3,4,5 Layers | Feeature: | Flexible Working |
| Application: | Recycling Plastic And Rubber | Sample: | Would Be Free |
| Shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Tooling: | With Charge |

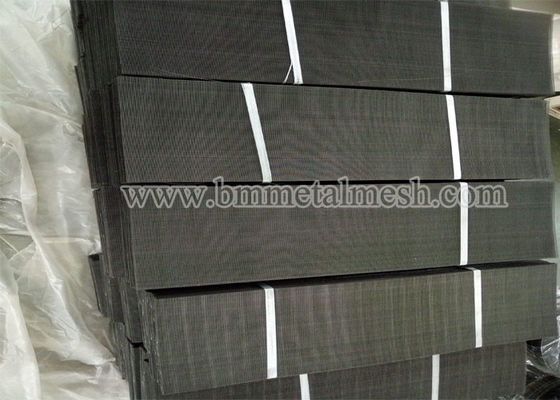

800 micron Black Extruder Screens Ensure Plastic Processing a Clean Extrusion (Factory)
Extruder screen is essential in preventing contamination in the melted mass during the extrusion process. It is effect to keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use. Mainly used for filtration of plastics and rubber processing industry, chemical and pharmaceutical industry.
| Standard Extruder Screen Size | |||
|---|---|---|---|
| Mesh | Wire Dia. mm | Aperture Size mm | Open Area |
| 10×10 | 0.711 | 1.829 mm | 51.8 |
| 14×14 | 0.457 | 1.357 mm | 55.9 |
| 16×16 | 0.457 | 1.131 mm | 50.7 |
| 20×20 | 0.559 | 0.711 mm | 31.4 |
| 20×20 | 0.457 | 0.813 mm | 41.0 |
| 24×24 | 0.376 | 0.682 mm | 41.4 |
| 30×30 | 0.376 | 0.531 mm | 34.2 |
| 30×30 | 0.310 | 0.536 mm | 40.0 |
| 40×40 | 0.274 | 0.361 mm | 32.3 |
| 50×50 | 0.193 | 0.335 mm | 43.6 |
| 60×60 | 0.193 | 0.230 mm | 29.8 |
| 80×80 | 0.122 | 0.196 mm | 37.9 |
| 100×100 | 0.102 | 0.152 mm | 36.0 |
| 120×120 | 0.091 | 0.120 mm | 31.8 |
| 150×150 | 0.071 | 0.088 mm | 29.6 |
| 200×200 | 0.050 | 0.077 mm | 36.76 |
| 250×250 | 0.040 | 0.062 mm | 36.76 |
| 300×300 | 0.040 | 0.045 mm | 27.83 |
| 325×325 | 0.035 | 0.043 mm | 30.49 |
| 400×400 | 0.028 | 0.036 mm | 31.25 |
| 500×500 | 0.025 | 0.026 mm | 25.79 |
Mild Steel 800 micron rating,size of 170*600mm for extrusion.
