|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||water-proof plastic film and wooden case|
|Delivery Time:||10-15 days after get the deposite|
|Payment Terms:||D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal|
|Supply Ability:||50000pcs per week|
|Material:||SUS304,316,316L||Filtering Rate:||5,10,20,25 Micron..700micron|
|Dia:||250mm||Mesh Type:||Plain Weave And Dutch Weave|
|Layers:||Single Layer,2,3,4,5 Layers||Feeature:||Flexible Working|
|Application:||Recycling Plastic And Rubber||Sample:||Would Be Free|
|Shipping:||By Sea,by Express||Main Marking:||Europe,America,Australia,Asia,Africa|
|Spot Welded:||4 Spot Or 8 Spot, Could As Client Request|

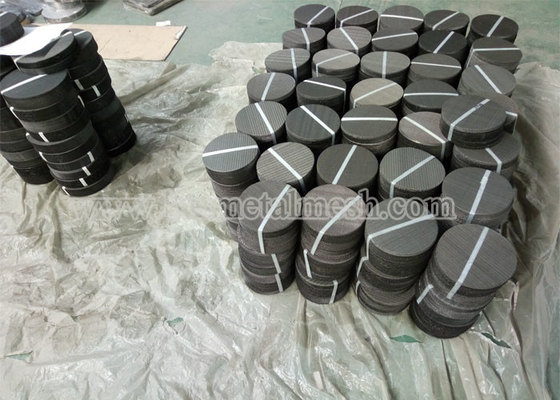

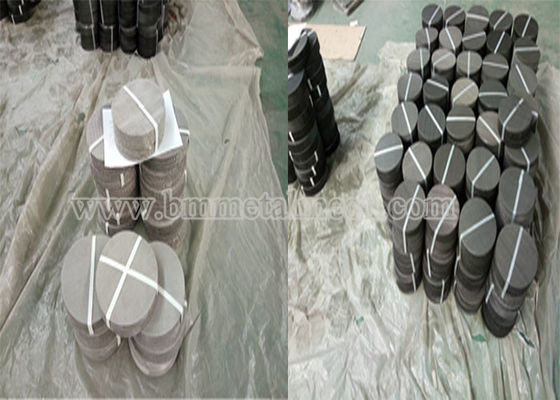

Filter Discs For Extruder Screen
Extruder screen can be used as a single filter disc or multiple discs to get you more and fine filtration.
Extruder screen pack put the coarse mesh in supporting mesh for fine mesh and spot welded them together or frame around with an aluminium metal frame. Plastic filmmaking plant they use cylindrical or tube shaped wire mesh filter. It is also called cylindrical extruder screen.
When you have to order Extruder screens please provide following information. Example as below.
Wire mesh screen dia: 250mm
Which mesh (Single disc) : 14mesh,24x110mesh and 12x64mesh
Multiple meshes together: 20+40+80+20 meshes (specify with frame or just spot welded)
Some Extrusion machine uses the continuous Extruder Screen BM Metal Mesh Screens is able to supply Extruder Screen Belts.
Here is the machine for spot pack screen.Filter Discs for extruder screen.
