| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN013 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $0.21-$3.99per piece |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Material: | Stainless Steel,mils Steel | Filtering Rate: | 5,10,20,25 Micron..700micron |
|---|---|---|---|
| Dia: | 45mm,60mm,150mm,as Client Request | Mesh Type: | Plain Weave And Dutch Weave |
| Layers: | Single Layer,2,3,4,5 Layers | Feeature: | Flexible Working |
| Application: | Recycling Plastic And Rubber | Sample: | Would Be Free |
| Shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Spot Welded: | 4 Spot Or 8 Spot, Could As Client Request | Tooling: | With Charge |

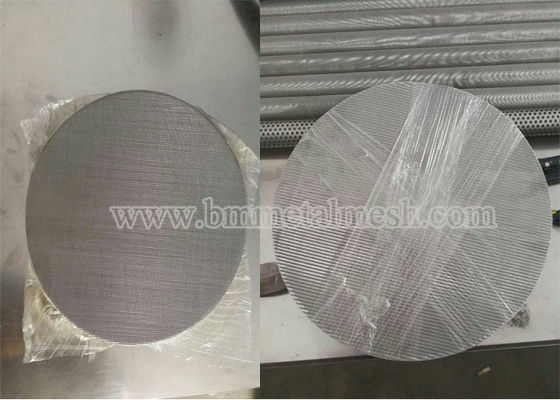

Manufacture Filter Disc Screen For Recycling Plastic
Filter Disc Screen For Recycling Plastic Specification
Material: low carbon steel, brass, aluminum, stainless steel 304, 316, 316L etc.
Mesh types: woven mesh, dutch mesh, perforated metal, expended metal, sintered mesh, etched mesh etc.
Discs Types: single-layer and multi-layer; edge covered disc, multi-layer welded disc, multi-layer sintered disc etc.
Disc Sizes: any size can be made according to your requirement, and we also have many exist mould
Specification
Filter Disc Screen Mesh Size
| Stainless Steel Wire Netting | ||
| Mesh/Inch | Wire Gauge(SWG) | Aperture in mm |
| 3mesh x 3mesh | 14 | 6.27 |
| 4mesh x 4mesh | 16 | 4.27 |
| 5mesh x 5mesh | 18 | 3.86 |
| 6mesh x 6mesh | 18 | 3.04 |
| 8mesh x 8mesh | 20 | 2.26 |
| 10mesh x 10mesh | 20 | 1.63 |
| 20mesh x 20mesh | 30 | 0.95 |
| 30mesh x 30mesh | 34 | 0.61 |
| 40mesh x 40mesh | 36 | 0.44 |
| 50mesh x 50mesh | 38 | 0.36 |
| 60mesh x 60mesh | 40 | 0.30 |
| 80mesh x 80mesh | 42 | 0.21 |
| 100mesh x 100mesh | 44 | 0.172 |
| 120mesh x 120mesh | 44 | 0.13 |
| 150mesh x 150mesh | 46 | 0.108 |
| 160mesh x 160mesh | 46 | 0.097 |
| 180mesh x 180mesh | 47 | 0.09 |
| 200mesh x 200mesh | 47 | 0.077 |
| 250mesh x 250mesh | 48 | 0.061 |
| 280mesh x 280mesh | 49 | 0.060 |
| 300mesh x 300mesh | 49 | 0.054 |
| 350mesh x 350mesh | 49 | 0.042 |
| 400mesh x 400mesh | 49 | 0.0385 |
| 500mesh x 500mesh | 50 | 0.0273 |
Filter Disc Screen For Recycling Plastic
Applications
1. Chemical products
2. Foodstuffs and spices (milk powder, coffee, tea, rice, grains)
3. Stones and powders (minerals, diamond sizing, ores, alumina)
4. Pharmaceutical products
5. Boards and fixing plates (dividing shavings and wadding)
6. Paper (sieving wood shavings, preparation of coatings)
7. Metal powders (Precision sieving of metal powders)
8. Rubber
9. Animal feedstuffs (dedusting pellets, sieving crumbs, molasses based foodstuffs)
10. Fertilisers (phosphates, potash, urea, mixed fertilisers)
11. Sugar and salt (sizing)
12. Plastic Recycling
