| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiated |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Material: | SUS304,316,316L,mild Steel | Filtering Rate: | 12*64 Mesh |
|---|---|---|---|
| Dia: | 45Mm,60Mm,150Mm,250Mm As Client Request | Mesh Type: | Plain Weave And Dutch Weave |
| Layers: | Single Layer | Feature: | Flexible Working |
| Spot Welded: | 4 Spot R 8 Spot, Could As Client Request | Application: | Recycling Plastic And Rubber |
| Sample: | Would Be Free | Main Marking: | Europe,America,Australia,Asia,Africa |
| Shipping: | By Sea,By Express | Tooling: | With Charge |

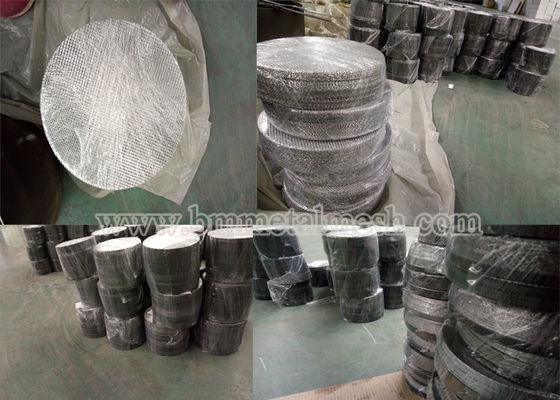

200Mm Diameter China Factory Extruder Screens Circular Mesh Screen
Extruder Screens Specifications
China Factory Extruder Screens Circular Mesh Screen
Layer :single layer
Price:0.20USD-30USD
Material : stainless steel, Mild steel
Tape: round, Rectangular , single , Multilayer
Range : diameter 5cm,:8cm,10cm,20cm,25cm
Round shape
Rectangle shape
Elliptical shape
other shapes
Single piece
multiple layered.
How to order extruder screen packs
For Example :
AISI 304(316) mesh 100X100
wire diameter 0.10mm , diameter 280mm ,quantity 2000pieces
extruder screen packs range
extruder screen packs
D from 44mm to 558mm
Rectangular extruder screen packs
L =75-397
B=55-94
Extruder Screens Circular Mesh Screen is widely used in plastic industry, rubber industry, industrial filtration, oil and chemical filtration, grain industry filtration, screening of powder particles, filtration of liquid and gas. Can also be used for all kinds of mold.
Extruder Screens Datas
|
PLain Weave Technical Data |
||||||
|
Meshes Per Linear Inch |
WIre Diameter |
Aperture Size |
Open Area, % |
|||
|
Inches |
mm |
Inches |
mm |
|||
|
1 |
0.135 |
3.5 |
0.865 |
21.97 |
74.8 |
|
|
1 |
0.120 |
3.0 |
0.880 |
22.35 |
77.4 |
|
|
1 |
0.105 |
2.5 |
0.895 |
22.73 |
80.1 |
|
|
1 |
0.080 |
2.0 |
0.920 |
23.36 |
84.6 |
|
|
3/4" |
0.120 |
3.0 |
0.630 |
16.00 |
70.5 |
|
|
3/4" |
0.080 |
2.0 |
0.670 |
17.01 |
79.8 |
|
|
2 × 2 |
0.120 |
3.0 |
0.380 |
9.65 |
57.8 |
|
|
2 × 2 |
0.105 |
2.5 |
0.395 |
10.03 |
62.4 |
|
|
2 × 2 |
0.080 |
2.0 |
0.420 |
10.66 |
70.6 |
|
|
2 × 2 |
0.063 |
1.6 |
0.437 |
11.10 |
76.4 |
|
|
2 × 2 |
0.047 |
1.2 |
0.453 |
11.50 |
82.1 |
|
|
3 × 3 |
0.080 |
2.0 |
0.253 |
6.42 |
57.6 |
|
|
3 × 3 |
0.063 |
1.6 |
0.270 |
6.85 |
65.6 |
|
|
3 × 3 |
0.047 |
1.2 |
0.286 |
7.26 |
73.6 |
|
|
4 × 4 |
0.080 |
2.0 |
0.170 |
4.31 |
46.2 |
|
|
4 × 4 |
0.063 |
1.6 |
0.187 |
4.75 |
56.0 |
|
|
4 × 4 |
0.047 |
1.2 |
0.203 |
5.15 |
65.9 |
|
|
5 × 5 |
0.047 |
1.2 |
0.153 |
3.88 |
58.5 |
|
|
5 × 5 |
0.041 |
1.0 |
0.159 |
4.01 |
63.2 |
|
|
6 × 6 |
0.063 |
1.6 |
0.104 |
2.64 |
38.9 |
|
|
6 × 6 |
0.047 |
1.2 |
0.120 |
3.04 |
51.8 |
|
|
6 × 6 |
0.035 |
0.9 |
0.132 |
3.35 |
62.7 |
|
|
8 × 8 |
0.063 |
1.6 |
0.062 |
1.57 |
24.6 |
|
|
8 × 8 |
0.047 |
1.2 |
0.078 |
1.98 |
38.9 |
|
|
8 × 8 |
0.035 |
0.9 |
0.090 |
2.28 |
51.8 |
|
|
8 × 8 |
0.032 |
0.8 |
0.093 |
2.36 |
55.4 |
|
|
8 × 8 |
0.028 |
0.7 |
0.097 |
2.46 |
60.2 |
|
|
10 × 10 |
0.047 |
1.2 |
0.053 |
1.34 |
28.1 |
|
|
10 × 10 |
0.035 |
0.9 |
0.065 |
1.65 |
42.3 |
|
|
10 × 10 |
0.032 |
0.8 |
0.068 |
1.27 |
46.2 |
|
|
10 × 10 |
0.025 |
0.63 |
0.075 |
1.90 |
56.3 |
|
|
12 × 12 |
0.041 |
1.0 |
0.042 |
1.06 |
25.4 |
|
|
12 × 12 |
0.035 |
0.9 |
0.048 |
1.22 |
33.2 |
|
|
12 × 12 |
0.032 |
0.8 |
0.051 |
1.29 |
37.5 |
|
|
12 × 12 |
0.028 |
0.7 |
0.055 |
1.39 |
43.6 |
|
|
12 × 12 |
0.023 |
0.58 |
0.060 |
1.52 |
51.8 |
|
|
14 × 14 |
0.032 |
0.8 |
0.039 |
1.52 |
29.8 |
|
|
14 × 14 |
0.025 |
0.63 |
0.046 |
0.99 |
41.5 |
|
|
14 × 14 |
0.023 |
0.58 |
0.048 |
1.22 |
45.2 |
|
|
14 × 14 |
0.020 |
0.5 |
0.051 |
1.30 |
51.0 |
|
|
16 × 16 |
0.028 |
0.7 |
0.035 |
0.89 |
30.5 |
|
|
16 × 16 |
0.023 |
0.58 |
0.040 |
1.01 |
39.9 |
|
|
16 × 16 |
0.018 |
0.45 |
0.045 |
1.14 |
50.7 |
|
|
18 × 18 |
0.020 |
0.5 |
0.036 |
0.91 |
41.1 |
|
|
18 × 18 |
0.018 |
0.45 |
0.038 |
0.96 |
48.3 |
|
|
20 × 20 |
0.023 |
0.58 |
0.027 |
0.68 |
29.2 |
|
|
20 × 20 |
0.020 |
0.5 |
0.030 |
0.76 |
36.0 |
|
|
20 × 20 |
0.018 |
0.45 |
0.032 |
0.81 |
41.0 |
|
|
20 × 20 |
0.016 |
0.40 |
0.034 |
0.86 |
46.2 |
|
|
24 × 24 |
0.014 |
0.35 |
0.028 |
0.71 |
44.2 |
|
|
28 × 28 |
0.010 |
0.25 |
0.026 |
0.66 |
51.8 |
|
|
30 × 30 |
0.013 |
0.33 |
0.020 |
0.50 |
37.1 |
|
|
30 × 30 |
0.012 |
0.30 |
0.021 |
0.53 |
40.8 |
|
|
35 × 35 |
0.012 |
0.30 |
0.017' |
0.43 |
33.8 |
|
|
35 × 35 |
0.010 |
0.25 |
0.019 |
0.48 |
42.4 |
|
|
40 × 40 |
0.014 |
0.35 |
0.011 |
0.28 |
19.3 |
|
|
40 × 40 |
0.012 |
0.30 |
0.013 |
0.33 |
27.4 |
|
|
40 × 40 |
0.010 |
0.25 |
0.015 |
0.38 |
36.0 |
|
|
40 × 40 |
0.0095 |
0.24 |
0.016 |
0.40 |
38.4 |
|
|
50 × 50 |
0.009 |
0.23 |
0.011 |
0.28 |
30.3 |
|
|
60 × 60 |
0.0075 |
0.19 |
0.009 |
0.22 |
30.5 |
|
|
70 × 70 |
0.0065 |
0.17 |
0.008 |
0.20 |
29.8 |
|
|
80 × 80 |
0.0070 |
0.18 |
0.006 |
0.15 |
19.4 |
|
|
80 × 80 |
0.0055 |
0.14 |
0.007 |
0.17 |
31.4 |
|
|
90 × 90 |
0.0055 |
0.14 |
0.006 |
0.15 |
25.4 |
|
|
100 × 100 |
0.0045 |
0.11 |
0.006 |
0.15 |
30.3 |
|
|
120 × 120 |
0.0040 |
0.10 |
0.0043 |
0.11 |
26.6 |
|
|
120 × 120 |
0.0037 |
0.09 |
0.005 |
0.12 |
30.7 |
|
|
150 × 150 |
0.0026 |
0.066 |
0.0041 |
0.10 |
37.4 |
|
|
165 × 165 |
0.0019 |
0.048 |
0.0041 |
0.10 |
44.0 |
|
|
180 × 180 |
0.0023 |
0.058 |
0.0032 |
0.08 |
33.5 |
|
|
180 × 180 |
0.0020 |
0.050 |
0.0035 |
0.09 |
41.1 |
|
|
200 × 200 |
0.0020 |
0.050 |
0.003 |
0.076 |
36.0 |
|
|
200 × 200 |
0.0016 |
0.040 |
0.0035 |
0.089 |
46.0 |
|
|
220 × 220 |
0.0019 |
0.048 |
0.0026 |
0.066 |
33.0 |
|
|
230 × 230 |
0.0014 |
0.035 |
0.0028 |
0.071 |
46.0 |
|
|
250 × 250 |
0.0016 |
0.040 |
0.0024 |
0.061 |
36.0 |
|
|
270 × 270 |
0.0014 |
0.040 |
0.0022 |
0.055 |
38.0 |
|
|
300 × 300 |
0.0012 |
0.030 |
0.0021 |
0.053 |
40.1 |
|
|
325 × 325 |
0.0014 |
0.040 |
0.0017 |
0.043 |
30.0 |
|
|
325 × 325 |
0.0011 |
0.028 |
0.0020 |
0.050 |
42.0 |
|
|
400 × 400 |
0.0010 |
0.025 |
0.0015 |
0.038 |
36.0 |
|
|
500 × 500 |
0.0010 |
0.025 |
0.0011 |
0.028 |
25.0 |
|
|
635 × 635 |
0.0009 |
0.022 |
0.0006 |
0.015 |
14.5 |
|
|
TWill WEave Technical Data |
||||
|
Items |
Mesh |
Wire Diameter (mm) |
Aperture (mm) |
Material (AISI) |
|
SSTW01 |
250 × 250 |
0.040 |
0.063 |
SUS316 |
|
SSTW02 |
300 × 300 |
0.040 |
0.044 |
|
|
SSTW03 |
325 × 325 |
0.035 |
0.043 |
SUS316L |
|
SSTW04 |
350 × 350 |
0.030 |
0.042 |
|
|
SSTW05 |
400 × 400 |
0.030 |
0.033 |
|
|
SSTW06 |
450 × 450 |
0.028 |
0.028 |
|
|
SSTW07 |
500 × 500 |
0.025 |
0.026 |
|
Extruder Screens Specifications Features:
|
Long using life |
| Anti-high temperture |
|
Anti-acid and alkali. |
| Corrosion resistance |
| Good filter performance |
