Place of Origin: | China |
Brand Name: | BM |
Certification: | CE |
Model Number: | ESM |
Minimum Order Quantity: | 10 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam |
Delivery Time: | 7-10 days after getting the deposite |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 60000 M² Per Week |
Woven Type: | Plain Weave | Material: | Stainless Steel |
---|---|---|---|
Technique: | Woven | Filter Rating: | 90% |
Hole Shape: | Square | Width: | 1mm 1.2mm,1.5M Or Customized |

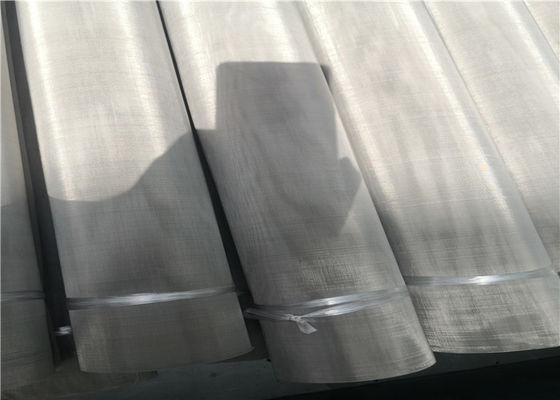

Plain Weave Stainless Steel Wire Mesh 100Mesh,150 Mesh,200 Mesh For Filtration,Square Hole Stainless Steel Woven Mesh
Stainless Steel Wire Mesh Description
Stainless steel mesh is mainly used for screening and filtration under acid and alkali environmental conditions. It is used in the petroleum industry as a mud mesh, chemical chemical fiber industry as a sieve filter, electroplating industry as a pickling net, gas, liquid filtration and other media separation. Generally, stainless steel wire, nickel wire and brass wire are used as materials. The specifications of the stainless steel mesh are mainly between 2-636 mesh.
Plain weave wire mesh Specification
Product Type: | High Tension Plain Weave SS304 Stainless Steel Wire Mesh Roll |
Material: | 304, other material such as 304L, 316, 316L, etc is also avaliable |
Wire diameter: | 0.025mm-1.8mm |
Mesh count: | 0.5mesh-635mesh |
Application: | sieving and filtering in acid, alkali environment |
Features: | alkali and acid resistence, abrasive resistence, corrosion resistant |
Roll length: | 30m,50m or at customer request |
Details sheet:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
Inch | MM | Inch | MM | |||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Stainless Steel Wire Mesh Packing
Anping XiRun Metal Wire Mesh Co.Ltd. is located in Anping County, Hebei Province, Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.the wire mesh product that we manufacture cover following items,
We welcome your enquiry.
