76.2*12.7mm Anti Climb Security Fencing 358 Prison Mesh Panels Cut Resistant
  • name
  • name

76.2*12.7mm Anti Climb Security Fencing 358 Prison Mesh Panels Cut Resistant

MOQ: 5000 Square Meters
Price: Negotiation
Standard Packaging: Pallets
Delivery Period: 8-10 Days After Getting Deposite
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 80000 Per Week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CE
Item:
358 Anti Climb Fence
Material:
Metal
Color:
Black,Green Or Customized
Post Height:
1200Mm,1800Mm,2400Mm,etc
Mesh Size:
76.2Mm X 12.7Mm
Post Material:
Steel
Post Size:
60 X 60Mm,80x80Mm,100x100Mm
Post Surface Treatment:
Powder Coating
Wire Diameter:
3.2mm,3.5mm,4.0Mm 5.0Mm
Post Thickness:
2Mm
Surface Treatment:
Galvanized Or PVC
Package:
Pallets
Highlight:

5.0mm mesh wire fence

,

black mesh wire fence

,

5.0mm metal mesh fence

Product Description

76.2*12.7mm Anti Climb Security Fencing 358 Prison Mesh Panels Cut Resistant





Product Description



Prison mesh panel system is a high security fencing system that is anti-climb due to its 76mm wide x 12.5mm high mesh apertures (3″ x 1/2″ inch). Commonly referred to as prison mesh due to its toughness and anti-climb properties, the security fencing is supplied in 2.515m wide panels in various heights of 1.2m, 1.8m, 2.0m, 2.1m, 2.4m, 3m up to 5.2m. The flat mesh panels are galvanised and poly powder coated (PPC) in a variety of RAL colours including the popular green (RAL 6005) and black (RAL 9005).



Product Specification



Installation Height (mm) 1800, 2100, 2400, 3000
Embedded Post Height (mm)
(600mm below the ground level)		 2400, 2700, 3000, 3600
Post Center Distance (mm) 3000
Distance Between the Horizontal Wires (mm) 12.7 ± 1.0 25.0 ± 1.0 50.0 ± 1.0
Distance Between the Vertical Wires (mm) 76 ± 3.00, 100 ± 3.00
Core Diameter of the Horizontal Galvanized Wire (mm) 3.5mm - 5.6mm ± 0.10
Core Diameter of the Vertical Galvanized Wire (mm) 3.5mm - 5.6mm ± 0.10
Weld Strength 80% of parent material
Tensile Strength 500 - 650 MPA
Plascoat and Powder Coating Black, Green, Grey



Fence height (m) Panel size
(Height × Width) (mm)		 Fence Post
(Height × Size × Thick)
(mm)		 Clamp Bar
(Height × Width × Thickness)
(mm)		 Middle/ corner
Clamp No. (pcs)
2 2000 × 2515 2700 × 60 × 60 × 2.5 2000 × 60 × 5.00 7 or 14
2.4 2400 × 2515 3100 × 60 × 60 × 2.5 2400 × 60 × 5.00 9 or 18
3 3000 × 2515 3800 × 80 × 80 × 2.5 3000 × 80 × 6.00 11 or 22
3.3 3300 × 2515 4200 × 80 × 80 × 2.5 3300 × 80 × 6.00 12 or 24
3.6 3600 × 2515 4500 × 100 × 100 × 3.0 3600 × 100 × 7.00 13 or 26
4.2 4200 × 2515 5200 × 100 × 100 × 4.0 4200 × 100 × 8.00 15 or 30
4.5 4500 × 2515 5500 × 100 × 100 × 5.0 4500 × 100 × 8.00 16 or 32
5.2 5200 × 2515 6200 × 120 × 120 × 5.0 5200 × 100 × 8.00 18 or 36



Manufactured with 4mm vertical wires and 4mm horizontal wires, the denseness and size of the wires provide a barrier that is difficult to pass narcotics, weapons, mobile phones and other contraband through the fence whilst also ensuring the occupants of the secure unit are kept safely and securely within the grounds of the institution.



The profiled mesh panels are supplied flat, and can be coated to a colour of choice and are also available pre-galvanised. The posts for this system are a square hollow section manufactured from high quality steel. The 356 flat mesh system / prison mesh is a must for higher security areas to prevent intruders, climbers. The thick wire and close mesh structure creates a strong and effective security fencing.



Product Panel Sizes

  • 1200mm high x 2515mm
  • 1800mm high x 2515mm
  • 2000mm high x 2515mm
  • 2100mm high x 2515mm
  • 2400mm high x 2515mm
  • 3000mm high x 2515mm
  • 5200mm high x 2515mm



Product Application



1.Prison Perimeters

2.Industrial and Commercial units

3.Police stations and security areas

4.School Perimeter fencing

5.Car Parks

6.High security applications



Prison Welded Mesh Fence Features:



High strength welded at each intersection.

Anti-climbing: more small openings, no toe or finger holds.

Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.

Powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection syste



Product Details

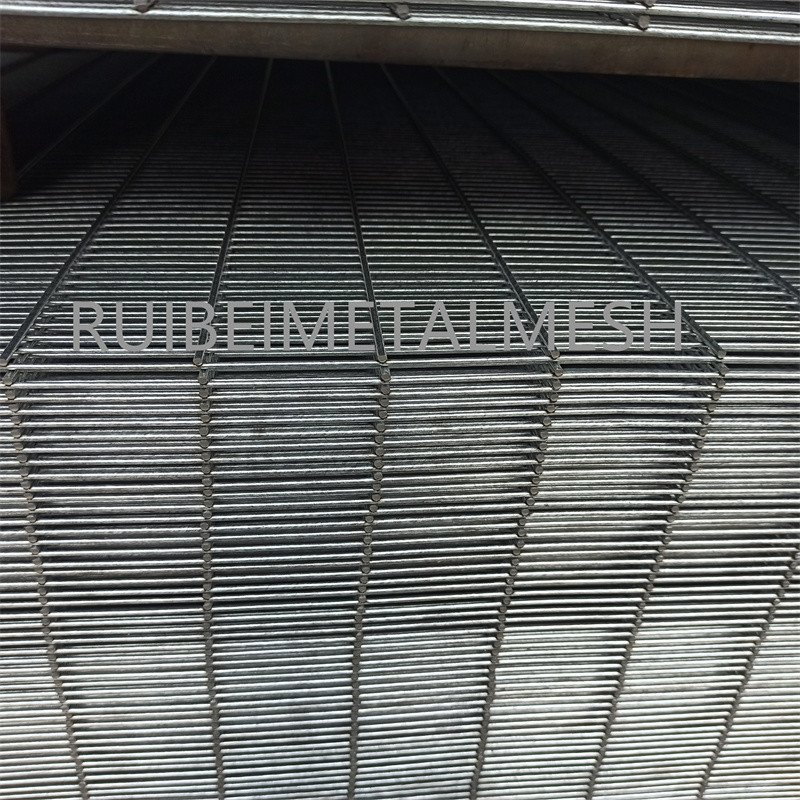

76.2*12.7mm Anti Climb Security Fencing 358 Prison Mesh Panels Cut Resistant 0



76.2*12.7mm Anti Climb Security Fencing 358 Prison Mesh Panels Cut Resistant 1
