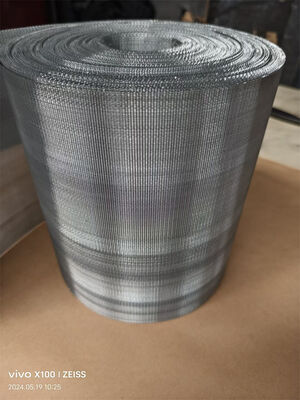

Galvanized 308Mm Extrusion Reverse Dutch Weave Wire Mesh 110 Mesh

MOQ: 1 Roll
Price: $9.58-$35.79 Per Square Meter
Standard Packaging: Water-Proof Plastic Film And Wooden Case
Delivery Period: 10 Days After Getting The Deposite
Payment Method: L/C,D/A,D/P,T/T,Western Union,paypal
Supply Capacity: 800 Rolls Per Week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CCC,CE
Model Number
BM-screen
Product:
Screen Filter Belt For Extrusion And Granulations
Key Word:
RDW Screen Filter Belt
Material:
Galvanized ,Copper Clad
Mesh Type:
110x15 110x10 110x8
Color:
Silver, Copper
Width:
308Mm
Length:
50M Or 80M
Filtering Rate:
200um,300um, 400um
Weave Type:
RDW
Application:
For Extrusion And Granulations
Highlight:

galvanized reverse dutch weave wire mesh

,

308mm extrusion filter screen

,

110 mesh extruder screen

Product Description
Galvanized 308Mm Extrusion Reverse Dutch Weave Wire Mesh 110 Mesh


Extrusion Reverse Dutch Weave Wire Mesh Information

The continuous (automatic) belt screens are innovation of extruder screens.

They are used for screening impurities out of molten plastic.

Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering process.

For copper clad steel wire material , is furnished with belt roll type , normally the weaving is reverse dutch weave , seeing from the appearance , the surface color is in brass shinning color .


Extrusion Reverse Dutch Weave Wire Mesh Detail :


Material Copper Clad , Galvanized
Mesh count
  • 110mesh,80 mesh,120 mesh in reverse dutch
  • 14x88,24x110 ,30x150,40x200 mesh in dutch weave
Height /width  100mm-400mm ( 228mm, 229mm, 308mm,309mm,400mm etc )
Length  10-100mtrs per roll (80m)
Weaving type  Reversed Plain Dutch (PZ) / Reversed Twilled Dutch (KPZ), dutch weave (DTW)
Wire Round wire or flat wire
belt weaving same material , we can weave 2 type : reverse dutch and dutch type
surface color same material , reverse dutch - brass yellow color , for dutch weave -black color
cutomerized   for the mesh and size , we can make on any special request .


Extrusion Reverse Dutch Weave Wire Mesh Applications :


The filter belt is fitted inside the screen changer machine having an inbuilt pressure sensor mechanism. When the filter belts gets excessively clogged due to foreign particle in the molten plastic, the back pressure inside the extrusion machine increases. like PP, PS, PVC, PET, PE, ABS, PMMA ,HDPE ,LDPE in belt style continuous screen changers.


Here is the list of plastic extruder reverse dutch weave wire mesh


Mesh Wire Dai.(mm) Thickness(mm) Width(cm)
45x15 0.45x0.6 1.75 9.7-28
48X10 0.50X0.50 3.6kg/sq.m 9.7-28
72x15 0.45x0.55 1.7 9.7-28
90X17 0.23X0.55 2.48kg/sq.m 9.7-28
110X17 0.23X0.55 2.6kg/sq.m 9.7-28
110X21 0.23X0.35 2.0kg/sq.m 9.7-28
120x16 0.35x0.45 1.36 9.7-28
132x17 0. 3x0.45 1.3 9.7-28
152x24 0.3x0.40 1.2 9.7-28
160x18 0.28x0.45 1.27 8-85
200x40 0.15x0.27 0.7 8-130
260x40 0.15 x0.27 0.65 8-130
300x40 0.15 x0.27 0.65 8-130
360x40 0.13 x0.27 0.6 8-130


Special specification we can produce according to customers' requirements.


Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh Features:


With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.


Belowing reverse dutch weave wire mesh Width is for 97mm


Galvanized 308Mm Extrusion Reverse Dutch Weave Wire Mesh 110 Mesh 0
