Extruder Screen Ensures Viable Extrusion
| Material: | Plain Steel | Filtering rate: | 5,10,20,25 Micron..600micron |
| Dia: | 45mm,60mm,150mm,as Client Request | Mesh type: | Plain Weave And Dutch Weave |
| Layers: | Single Layer,2,3,4,5 Layers | Feeature: | Flexible Working |
| Application: | Recycling Plastic And Rubber | Sample: | Would Be Free |
| shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Spot welded: | 4 Spot Or 8 Spot, Could As Client Request | Tooling: | With Charge |
| Usage: | Liquid Filter, Air Filter, Solid Filter | ||
| High Light: | flexible screen filter mesh,flexible extruder filter screen,dutch weave screen filter mesh |
||

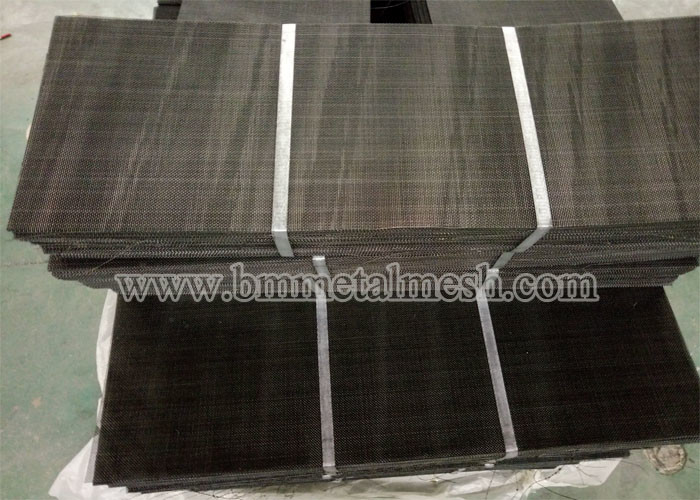

Extruder Screen Ensures Viable Extrusion
Extruder screen with superior performance is made from stainless steel wire cloth. And other materials can also be supplied. Due to its durability and chemical resistance, it is mainly used in melt extrusion and filtration. The screen is made to circular or other different shapes. And we can supply single layer or multi layers extruder screen in any mesh and diameters according to customer's requirement, for example extruder screen packs and extruder screen discs
Wire diameters: 0.01-6.00 mm.
Disc diameters: 5-600 mm.
Disc shapes: round (diameter 44-600 mm), ring (inner diameter 18-50 mm, outer diameter 50-350 mm), rectangular (length 60-400 mm, width 50-100 mm), crescent, semicircle, square, oval, abnormal shape, etc.
Weaving types: plain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.
Layers: single layer or multiple layers.
Edge processing methods: spot welding, wrapping edge or no edge processing.
Marginal materials: stainless steel, copper, aluminum, rubber, etc.
Filter precision: 0.1-300 µm.
Excel List:
We are factory,so any quantity would be accept.
- extruder screens:
- Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
- Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
- Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).
- Stainless steel,dia,250mm,12/64 mesh (wire 0.6/0.4mm)
- stainless steel.dia,250mm,24/110mesh (wire 0.35/0.25mm)
Features:
- Made of anti-corrosive raw materials and advanced technology which can hold up to multiple environments and uses.
- Available in different sizes, shapes and specifications.
- Reliable extrusion and filtration capacity.
- Smooth surface with no sharp edges, burrs or acute angles.
- Very durable with robust structure.
- Acid-resistance, alkali-resistance, hot-resistance, high tensile strength, wear-resistance.
Application:
Extruder screen is widely used in the field of petroleum, chemical industry, chemical fiber, rubber, metallurgy, medicine and food industries. Besides, the screen also can be applied in filtering of gas and liquid, separating foreign matters.
