| Place of Origin: | CHINA |
| Brand Name: | BM |
| Certification: | CE |
| Model Number: | GABIONS |
| Minimum Order Quantity: | 5 Square Meter |
|---|---|
| Price: | $1.65 Per Square Meter |
| Packaging Details: | Packs or Pallets |
| Delivery Time: | 7-10 days after getting the deposite |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 m² Per Week |
| Mesh Shape: | Hexagonal Hole | Material: | Galvanized Iron Wire |
|---|---|---|---|
| Application: | Gabion Project Construction | Hole Size: | 60x80MM |
| Wire Diameter: | 2.7x3.7mm | Normal Size: | 2x0.5x1M,1x0.5x1M |

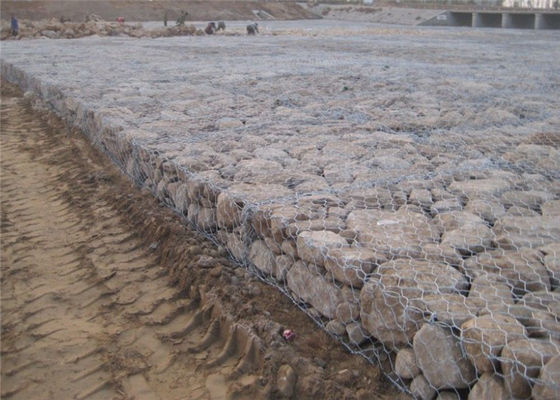

Gabion Basket With 60x80MM Hexagonal Mesh Double Twisted Woven Gabion Box
Gabion Basket Introduction
Woven gabions can be made of various corrosive resistant materials and then woven into a series of hexagonal meshes panels. Then the panels are added the thicker selvedge wires for higher loading capacity and durability. Different part of woven gabions are attached together by the lacing wire.
Woven gabions are a type of classical products used in the river bank protection and flood controlling applications. Compared with welded gabions, there are no welding point, which can resist the erosion from flood and sea water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty applications.
Woven gabion is made of various materials wires and then twisted into hexagonal mesh types. the woven gabion can be different twist types:
Double twisted-Double twisted woven gabion is the common seen and most widely used type. It can satisfy the common applications in the project.
Triple twisted-Triple twisted woven gabion has higher tensile strength and stability than the double twisted woven gabion. It is suitable for heavy duty applications.
Gabion Basket Features of woven gabion:
Good corrosion and rust resistance.
Various specs for choice.
Different materials for different budget.
Different height for different applications.
Suitable for any harsh environments.
High tensile strength for heavy duty applications.
•Gabion Basket Applications of woven gabion:
Gravity retaining wall;Channel linings.
Earth reinforcing structures.
Hydraulic structures;Outfall structures.
Coastal embankment works.
Dams and culverts;Slope paving and weirs.
Stream, river and canal training works.
Erosion protection;Roadway and bridge protection.
•Gabion Basket With 60x80MM Hexagonal Mesh Double Twisted Woven Gabion BoxPackaging :Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Material: galvanized wire, PVC coated wire.
Wire diameter:
Mesh wire diameter: 2.0 mm - 4.0 mm.
Selvedge wire diameter: 3.0 mm - 4.4 mm.
Lacing wire: 2.2 mm.
Mesh size: 60mmx80mm, 80mmx100mm, 80mmx120mm,100mmx120mm, 100mx150mm,120mmx150mm,etc.
Length: maximum 6 m.
Width: maximum 3 m.
Height: 0.17 m, 0.21 m, 0.3 m, 0.5 m, 1 m, 1.5 m, etc.
| Length (m) | Width (m) | Height (m) |
| 1,0 | 0,5 | 0,5 |
| 1,5 | 1 | 0,5 |
| 2 | 1 | 0,5 |
| 3 | 1 | 0,5 |
| 4 | 1 | 0,5 |
| 1,5 | 1 | 1 |
| 2 | 1 | 1 |
| 3 | 1 | 1 |
| 4 | 1 | 1 |
