Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen mesh Belt
  • name
  • name

Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen mesh Belt

MOQ: 1 roll
Price: $6.53-$33.69 per square meter

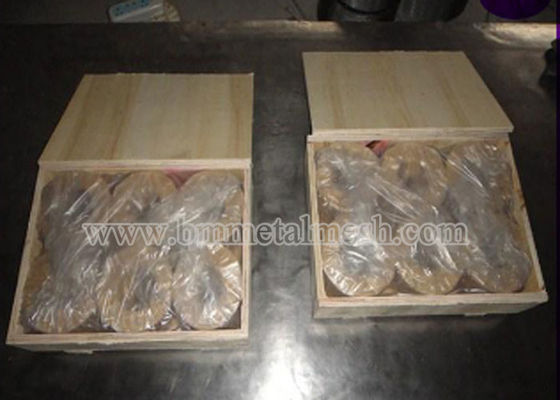

Standard Packaging: Waterproof paper inside,carton or plywood case outside
Delivery Period: 15 days after get the deposite
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 m² per week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
BM
Certification
CE,ISO
Model Number
BM-EXTRUDERSCREEN
Material:
Stainless Steel
Technique:
Reverse Dutch Weave
Mesh:
260/40
Feature:
Good Filtering Precision
Application:
Plastics Extruder, Stretch Film Machine
Length:
10M/20M
Width:
97-400mm
Highlight:

dutch weave screen filter mesh

,

dutch weave extruder filter screen

,

10m screen filter mesh

Product Description

Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen mesh Belt

we have different kind of mesh size : 260x40 ,152x24,72x15 ,,,, also 160 ,180 ,200 mesh

Different kind of width size :97mm,127mm,130mm,150mm,160mm , etc



Mesh belt : 132x17 mesh, 152x24 mesh, 260x40 mesh, 72x15mesh.150x17 mesh.

132x17mesh: 0.3x0.45mm,4.4kg/sqm.

152x24mesh: 0.3x0.4mm. 3.5kg/sqm.

260x40mesh: 0.15x0.27mm.2.1kg/sqm.

72x15mesh: 0.45x0.55mm. 5kg/sqm.

Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm.

Length: 10m , 20m / roll.



Material: Stainless steel 304.

Woven style: Reversed dutch woven .

Used on the automatic screen changer, for filtering.



Custom designs are also available



Basic specifications



Mesh Wire Dai.(mm) Thickness(mm) Width(cm)
45x15 0.45x0.6 1.75 9.7-28
48X10 0.50X0.50 3.6kg/sq.m 9.7-28
72x15 0.45x0.55 1.7 9.7-28
90X17 0.23X0.55 2.48kg/sq.m 9.7-28
110X17 0.23X0.55 2.6kg/sq.m 9.7-28
110X21 0.23X0.35 2.0kg/sq.m 9.7-28
120x16 0.35x0.45 1.36 9.7-28
132x17 0. 3x0.45 1.3 9.7-28
152x24 0.3x0.40 1.2 9.7-28
160x18 0.28x0.45 1.27 8-85
200x40 0.15x0.27 0.7 8-130
260x40 0.15 x0.27 0.65 8-130
300x40 0.15 x0.27 0.65 8-130
360x40 0.13 x0.27 0.6 8-130
Special specification we can produce according to customers' requirements.



Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen mesh Belt 0

                                              260/40 Extruded Screen Mesh
