| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $0.33-$2.09 per piece |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Material: | Mild Steel | Filtering Rate: | 40 Mesh |
|---|---|---|---|
| Dia: | 200mm,170mm Etc | Mesh Type: | Dutch Weave Type |
| Layers: | Single Layer | Feeature: | Flexible Working |
| Application: | Recycling Plastic And Rubber | Sample: | Would Be Free |
| Shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Spot Welded: | Could As Client Request | Tooling: | With Charge |
| Usage: | Plastic Processing,rubber Industry |

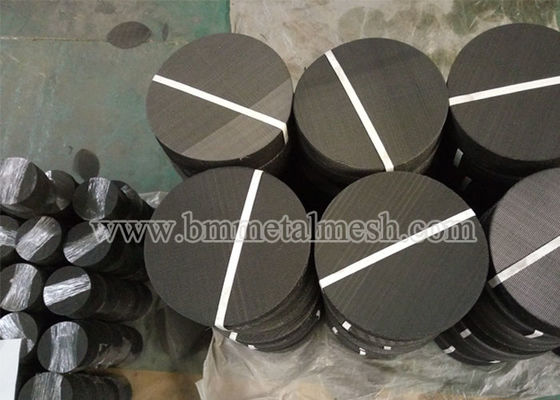

Extruder Screen Filter Disc
Extruder screen filter disc serves the purpose for extremely thin and fine extrusion process in industrial sectors. Filter discs can be made of woven wire mesh, woven wire mesh filter discs are the most popular one. Micro filters discs are available in single and multiple layers with & without frame, multiple layers with spot welding.
 |
Extruder Screen Filter Disc
1.material:ss304/316,etc
2.mesh:10--500mesh.
3.shape:round,etc.
4.ISO/CE/SGS certificate
1.Material:SS201/202/304/316/304L/316L,etc.
2.Hole shape:Square.
3.Mesh:10--500mesh.
4.Thickness:0.6--1.8mm.
5.Wire dia:0.03--0.7mm.
6.Diameter:Can be customized.
7.Filter shape:Round,oblong,oval,etc.
| Specification Table | |||
| Standard Filter Disc | |||
|
MESH
|
WIRE DIA. ( MM )
|
APERTURE SIZE ( MM )
|
OPEN AREA
|
|
10 X 10
|
0.711
|
1.829
|
51.8
|
|
14 X 14
|
0.457
|
1.357
|
55.9
|
|
16 X 16
|
0.457
|
1.131
|
50.7
|
|
20 X 20
|
0.559
|
0.711
|
31.4
|
|
20 X 20
|
0.457
|
0.813
|
41.0
|
|
24 X 24
|
0.376
|
0.682
|
41.4
|
|
30 X 30
|
0.376
|
0.531
|
34.2
|
|
30 X 30
|
0.310
|
0.536
|
40.0
|
|
40 X 40
|
0.274
|
0.361
|
32.3
|
|
50 X 50
|
0.193
|
0.335
|
43.6
|
|
60 X 60
|
0.193
|
0.230
|
29.8
|
|
80 X 80
|
0.122
|
0.196
|
37.9
|
|
100 X 100
|
0.102
|
0.152
|
36.0
|
|
120 X 120
|
0.091
|
0.120
|
31.8
|
|
150 X 150
|
0.071
|
0.088
|
29.6
|
|
200 X 200
|
0.050
|
0.077
|
36.76
|
|
250 X 250
|
0.040
|
0.062
|
36.76
|
|
300 X 300
|
0.040
|
0.045
|
27.83
|
|
325 X 325
|
0.035
|
0.043
|
30.49
|
|
400 X 400
|
0.028
|
0.036
|
31.25
|
|
500 X 500
|
0.025
|
0.026
|
25.79
|
2.Weaving Types
BM Metal Mesh are specialists in the manufacture of woven wire mesh filters and Extruder screens for a wide variety of industrial clients and applications.
|
|
|
Single Screen FiltersOften used in the plastic recamation industry, possibly with a Dutch Weave filter used with a plain weave support filter. |
Spot Welded PacksExcellent in any field where a specific graduated filtration is required. |
Rim packsSpot-welded packs with an Aluminium or Stainless steel rim added for extra rigidity and strength. |
The majority of standard woven wire disc sizes used in plastic extrusion and filtration processes are available from existing tooling. These diameters can be supplied in all of our Standard Stock Specifications as well as the range of Dutch Weaves.
Plastic Extruder Screens and Woven Wire Mesh Screen Filters made from BM Metal mesh have many extrusion applications within the plastics industry. Some examples are:
Features of Circular Extruder Screen:
Application of Extruder Screens:
The major application of Extruder screen is, it keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use.
Circular Extruder Screen are used in various industries as following:
