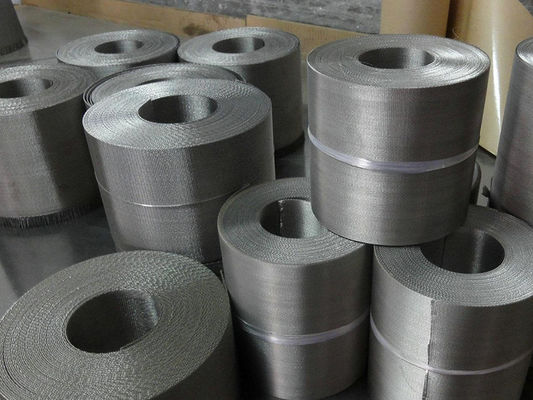

Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts

Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts

    • Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts
    • Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts
  • Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts

    Product Details:

    Place of Origin: CHINA
    Brand Name: BM
    Certification: CE
    Model Number: FM-DW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 EA
    Price: Be Negotiated
    Packaging Details: Water-proof plastic film and wooden case
    Delivery Time: 7-10 Days After Get The Advanced Payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20000 Pcs Per Week
    Contact Now
    Detailed Product Description
    Name: Extruder Screen Dutch Weave Type Material: Stainless Steel Or Galvanized
    Length: 10M Application: Mesh Filter
    Feature: Reusable And Washable Usage: Extruder Screen Machine

    Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts





    Filter Screen Wire Mesh For PP PE Plastic Recycling Description



    Stainless Steel Wire Mesh Reverse Dutch Woven Cloth for Plastic Extruder Screen is a kind of stainless steel woven wire mesh. the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves.



    Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.



    There are two Weave types of reverse dutch weave mesh :

    1. reverse Plain dutch weave mesh
      it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance
    2. reverse Dutch Weave but Twilled Weave mesh:each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.



    Feature of Reverse Dutch Weave Wire Mesh:

    • Resistant to abrasion
    • Durability
    • Sturdiness
    • Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
    • High strength, good tensiontoughness and abrasion performance in use.



    Application of Reverse Dutch Weave Wire Mesh:



    Used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.



    Specifications of Reverse Dutch Weave Wire Cloth / Wire Net :



    Mesh/inch Wire Dia.(mm) Width(mm) Length/Roll(m)
    72/15 0.45/0.55 97---400 10/20
    120/15 0.35/0.45 97---400 10/20
    132/17 0.32/0.45 97---400 10/20
    150/17 0.3/0.45 97---400 10/20
    152/24 0.27/0.4 97---400 10/20
    152/30 0.27/0.4 97-400 10/20
    170/17 0.27/0.45 97-400 10/20
    180/18 0.27/0.45 97-400 10/20
    200/40 0.17/0.27 97---400 10/20
    260/40 0.15/0.25 97---400 10/20



    Dutch Weave Metal Reverse Dutch Stainless Steel Wire Mesh Belts
