Circle Filter Screen Mesh Diameter 305mm

MOQ: 5 pcs
Price: $5.72-$6.98 Per Sheet
Standard Packaging: Water-Proof Plastic Film And Wooden Case
Delivery Period: 10 Days After Getting The Deposite
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 2000 Pcs Per Week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CCC,CE
Model Number
BM-screen
Material:
Mild Steel
Mesh Type:
14*88,12*64,24*110
Shape:
Circle Shape
Recyling Material:
PP,PE,ABS,polymer,packing
Size:
Could Do As Your Request
Diameter:
200mm,could Do As Your Request
Layer:
Single Layer,double Layer,multilayers
Surface:
Smooth Screen
Application:
Filteration And Seperation
Highlight:

pp filter screen mesh

,

pp screen filter mesh

,

200mm filter screen mesh

Product Description
Circle Filter Screen Mesh Diameter 305mm


We are experienced manufacturer of woven wire mesh for since year 2007.Our main products are filter elements, wire mesh cloth, filter screen pack, spot welding screen pack, automatic stainless steel screen belt, strengthening screen, conveyor belt, and wire mesh demister.We provide sample customization, drawing customization and other diversified services, committed to creating a diversified filter.

Circle Filter Screen Mesh are available in different size, variants and specifications. They are highly durable with robust structure and have features of anti-abrasive and anti-corrosive in single layer and muti-layer.


They are predominantly used in the extruded profiles and blown film industries where the contamination of the raw material is less and there is often lower pressure within the extruder head.

Many single layer circle filter screen mesh are assembled properly and spot welded with each other to form multilayer. It can be with or without selvage. Multilayer extruder screen is used for fine and thin level of extrusion to prevent the mixing of foreign particles. Multilayer Extruder Screen helps in making extrusion more clear and clean.

Mesh :10mesh-500mesh
Layer:single,double,multilayer.
Disc Diameter: 50mm -580mm
The different wire meshes are processing as per desired shapes and sizes; assembled properly and spot welded with each other to form multilayer.


Circle extruder screen filter mesh  for typical plastic materials that are used in extrusion include but are not limited to: polyethylene (PE), polypropylene, acetal, acrylic, nylon (polyamides), polystyrene, polyvinyl chloride (PVC), acrylonitrile butadiene styrene (ABS) and polycarbonate

Extrusion metal screen are including:stainless steel,mild steel,galvanized...

Shape including kinds of shapes,rectangle,kidness...

Specification generally:12x64,14x88,24x110,30x150,40x200,50x250...according to your actually.

Plastic extrusion is a high-volume manufacturing process in which raw plastic is melted and formed into a continuous profile. Extrusion produces items such as pipe/tubing, weatherstripping, fencing, deck railings, window frames, plastic films and sheeting, thermoplastic coatings, and wire insulation.

This process starts by feeding plastic material (pellets, granules, flakes or powders) from a hopper into the barrel of the extruder. The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel. The molten polymer is then forced into a die, which shapes the polymer into a shape that hardens during cooling.

The tables below shows the standard grades and specifications available for XC-FILTER's plain weave wire mesh & twill weave wire mesh.


Mesh  Wire Dia.  (mm) Aperture(mm) Open Area%
4×4 1.219 5.131 65.3
5×5 0.914 4.166 67.2
6×6 0.914 3.319 61.5
8×8 0.711 2.464 60.2
10×10 0.711 1.829 51.8
12×12 0.559 1.558 54.1
14×14 0.457 1.357 55.9
16×16 0.457 1.131 50.7
20×20 0.559 0.711 31.4
20×20 0.457 0.813 41.0
24×24 0.376 0.682 41.1
30×30 0.376 0.531 34.2
30×30 0.310 0.536 40.0
40×40 0.274 0.361 32.3
40×40 0.234 0.401 39.9
50×50 0.193 0.335 43.6
60×60 0.193 0.230 29.8
60×60 0.152 0.271 41.2
80×80 0.122 0.196 37.9
100×100 0.102 0.152 36.0
120×120 0.091 0.120 31.8
150×150 0.071 0.088 29.6
200×200 0.051 0.076 36.0
250×250 0.041 0.061 36.0
300×300 0.041 0.043 26.5
325×325 0.035 0.043 30.0
400×400 0.030 0.033 27.0
500×500 0.025 0.026 26.0
(Special specification we can produce according to customer's requirements)

 Dutch Weave Filter Mesh


The tables below shows the standard grades and specifications available for XC-FILTER's plain dutch weave wire mesh


Warp/Weft Mesh  Wire Dia.  (inch) Absolute filter value (μm) Nominal filter value (μm)
12×64 .024×.0165 270--285 200--205
14×88 .020×.013 225--245 150--155
20×150 .0098×.007 155--165 100--105
24×110 .014×.010 115--125 80--85
30×150 .009×.007 95--100 65--70
40×200 .007×.0055 65--70 55--60
50×250 .0055×.0045 55--60 40--45
80×400 .0049×.0028 43--48 35--40
(Special specification we can produce according to customer's requirements)

The tables below shows the standard grades and specifications available for XC-FILTER's twill dutch weave wire mesh


Warp/Weft Mesh  Wire Dia.  (inch) Absolute filter value (μm) Nominal filter value (μm)
20×250 .0098×.0079 110--120 98--105
30×360 .0098×.0060 90--100 80--84
40×560 .0070×.0040 70--75 47--52
120×400 .0040×.0025 50--55 37--43
120×160 .0040×.0025 40--45 28--32
80×700 .0040×.0030 35--40 24--26
200×600 .0024×.0018 28--32 19--21
165×800 .0028×.0020 24--26 14--16
165×1400 .0028×.0016 16--18 9--11
200×1400 .0028×.0016 12--14 5--6
250×1400 .0022×.0016 11--12 3--4
325×2300 .0015×.0010 8--9 2--3
(Special specification we can produce according to customer's requirements)


·Reverse Dutch Weave Wire Mesh


The tables below shows the standard grades and specifications available for XC-FILTER's  reverse dutch weave wire mesh


Warp/Weft Mesh  Wire Dia.  (mm) Mesh Thickness  (mm)
72×15 0.45×0.55 1.75
120×15 0.35×0.45 1.25
132×17 0.32×0.45 1.20
150×17 0.30×0.45 1.20
152×24 0.27×0.40 1.05
152×30 0.25×0.30 1.00
170×17 0.27×0.45 1.17
260×40 0.15×0.25 0.65
(Special specification we can produce according to customer's requirements)


The diameter is depend on your request.

Round shape single layer of Extruder screen filter
Material is stainless steel

Circle extruder screen mesh filter in single or multilayer keep particles out/filter disc mesh

Mild steel Rectangle shape single layer of extruder screen filter mesh

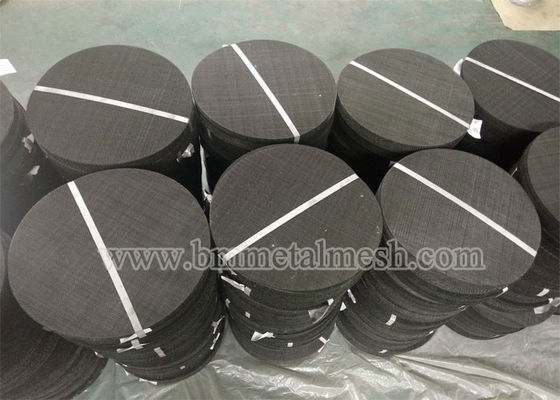

Circle Filter Screen Mesh Diameter 305mm

Packing is wooden case for extruder screen filter mesh

Circle extruder screen mesh filter in single or multilayer keep particles out/filter disc mesh

Any interesting,pls do not hesitate to let me know.
