120 Mesh 308Mm x80M Copper Wire Extruder Filter Screen Continous Filter Belt For Film Blowing Line
  • name
  • name

120 Mesh 308Mm x80M Copper Wire Extruder Filter Screen Continous Filter Belt For Film Blowing Line

MOQ: 3 Rolls
Price: Negotiation
Standard Packaging: Water-Proof Plastic Film And Wooden Case
Delivery Period: 7-10 Days After Getting The Deposite
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 600 Rolls per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BM
Certification
CCC,CE
Model Number
BM-filterscreen
Product Name:
Copper Clad Steel Wire Continous Filter Belt Screens
Surface Treatment:
Copper Clad
Width:
308Mm 203Mm
Length:
50M 45M 40M As Required
Pressure:
200 Bar
Usage:
For Extruder Plastic Production
MOQ:
3 Rolls
Highlight:

copper wire extruder filter screen

,

308mm screen filter mesh

,

308mm extruder filter screen

Product Description

High Quality 120 Mesh 308Mm x80M Copper Wire Screen Changer Continous Filter Belt Screens For Film Blowing Line




Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Basic Information



Product name

Copper clade steel wire woven belt type filter screen


Material

Warp: Copper weld wire(tensile strength 2500N/mm2)
Weft: Galvanized wire(tensile strength 550N/mm2)


Wire diameter

Warp: 0.25mm
Weft: 0.35mm
Weft can be flat wire: 0.26mmx0.38mm


Mesh count

110 x 17 MESH 110 x 15 MESH
110 x 13 MESH 110 x 11 MESH
Tolerance (±1mesh),or customized

Width

308mm (+0-2mm); 230mm (+0-2mm),or customized

Length

40m, 50m, 80m,or customized

Roll diameter

60mm - 80mm, or as request




Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Description:



Reverse Dutch weave is the reverse of plain Dutch weave.The weft wires' diameter are larger than the warp wires.Consequently,the warp mesh count is more than the weft mesh count.Smaller and closer warp wires together with the weft wires form triangular shaped transversal openings.The reverse Dutch weave has a very high level of mechanical load.





Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Specification Table :



mesh count wire dia.(mm) mesh thickness(mm)
warp weft warp warp
72 15 0.05 0.50 0.18
132 17 0.35 0.45 0.14
152 24 0.31 0.35 1.04
260 40 0.15 0.52 0.69



Production Processing

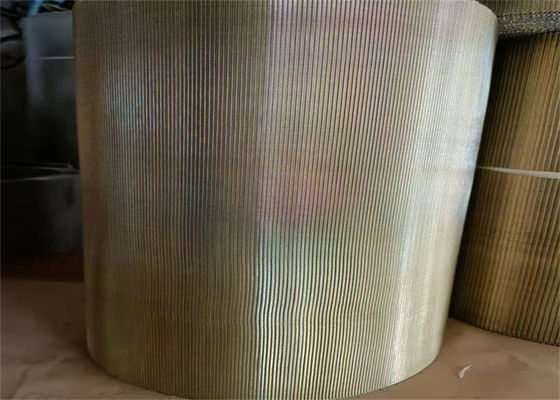

120 Mesh 308Mm x80M Copper Wire Extruder Filter Screen Continous Filter Belt For Film Blowing Line 0

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Benifits



Special process makes the safe edges
More resistant to impact and abrasion;
High tensile strength avoids breaking;
Extremely strong,easy clean and has a high flow rate.



Copper Clad Steel Wire Reverse Dutch Woven Belt Type Filter Application

  1. Automaticcontinuous screen that are used with screen changer

  2. polymer melt filtration in every segment of plastics processing including: blown film, blow molding, sheet and film extrusion, filaments & fibers, pipe and profile, pelletizing, BIAX (BOPP and BOPS),

  3. and are designed to be used with all families of thermoplastics, including Polyethylene (LDPE, LLDPE and HDPE) Polystyrene (PS, HIPS), Polycarbonate, ABS, Acrylic, Flexible PVC, Nylon (PA 6, PA 66, PA 11) and Polyesters, as well as a wide range of engineering resins.

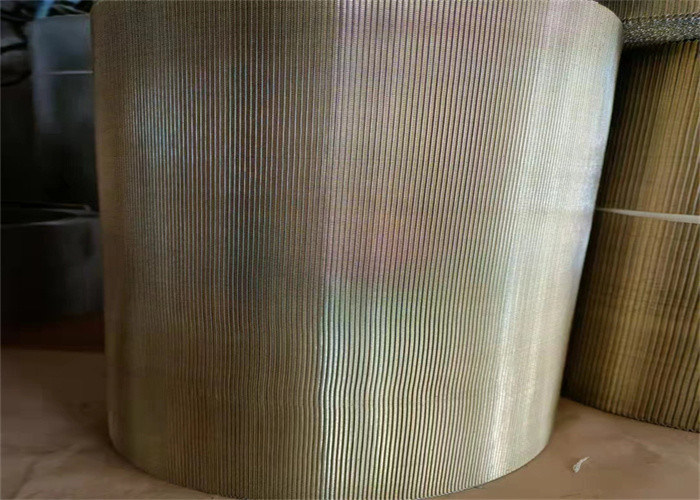

120 Mesh 308Mm x80M Copper Wire Extruder Filter Screen Continous Filter Belt For Film Blowing Line 1

120 Mesh 308Mm x80M Copper Wire Extruder Filter Screen Continous Filter Belt For Film Blowing Line 2
